Autel PowerScan PS100 Automotive Circuit Tester, Power Circuit Probe Tool, 12-24V Electrical Short Open Breaker Circuit Finder, AC/DC Current Resistance, Duty Cycle, & 20FT Extension Cord, for 99% Cars

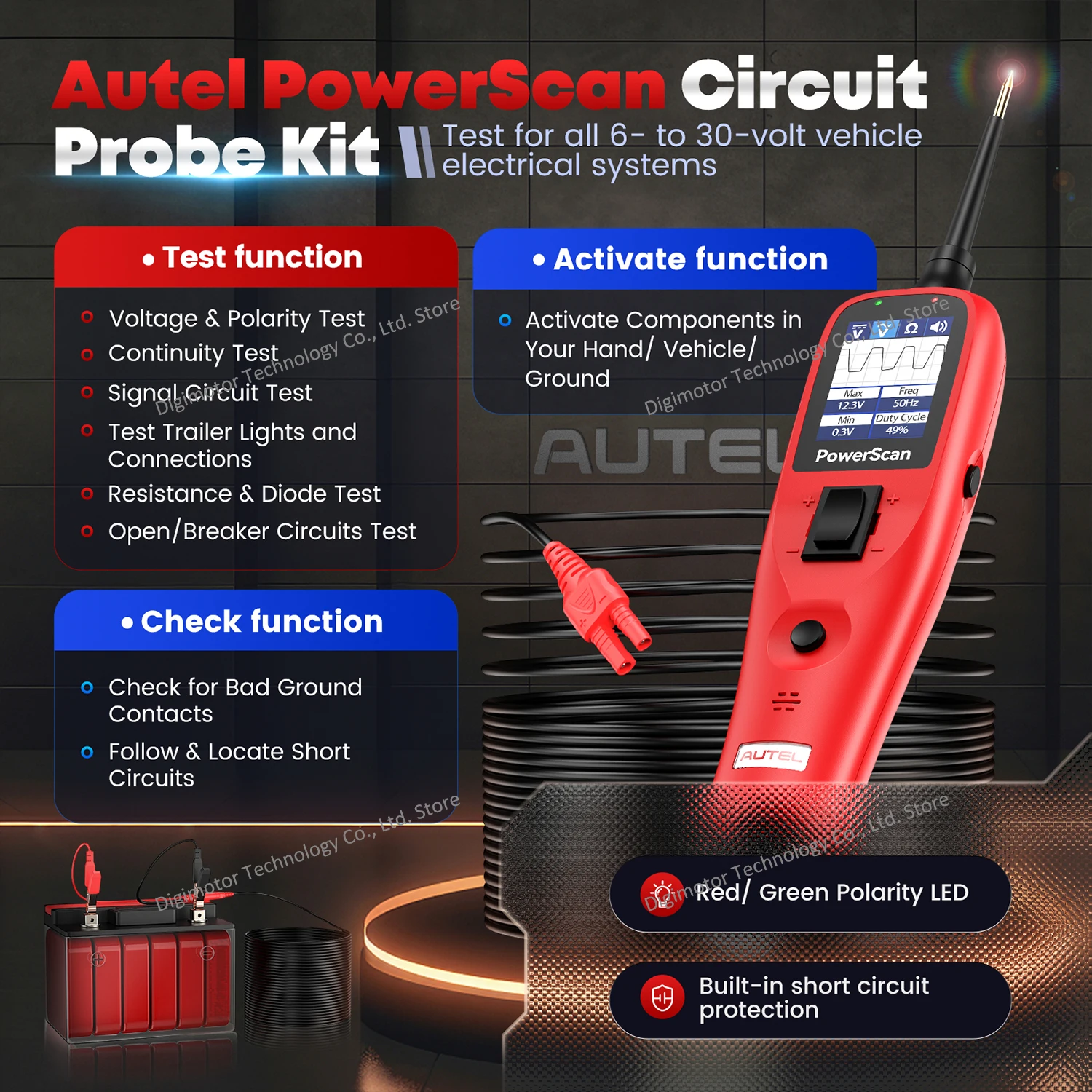

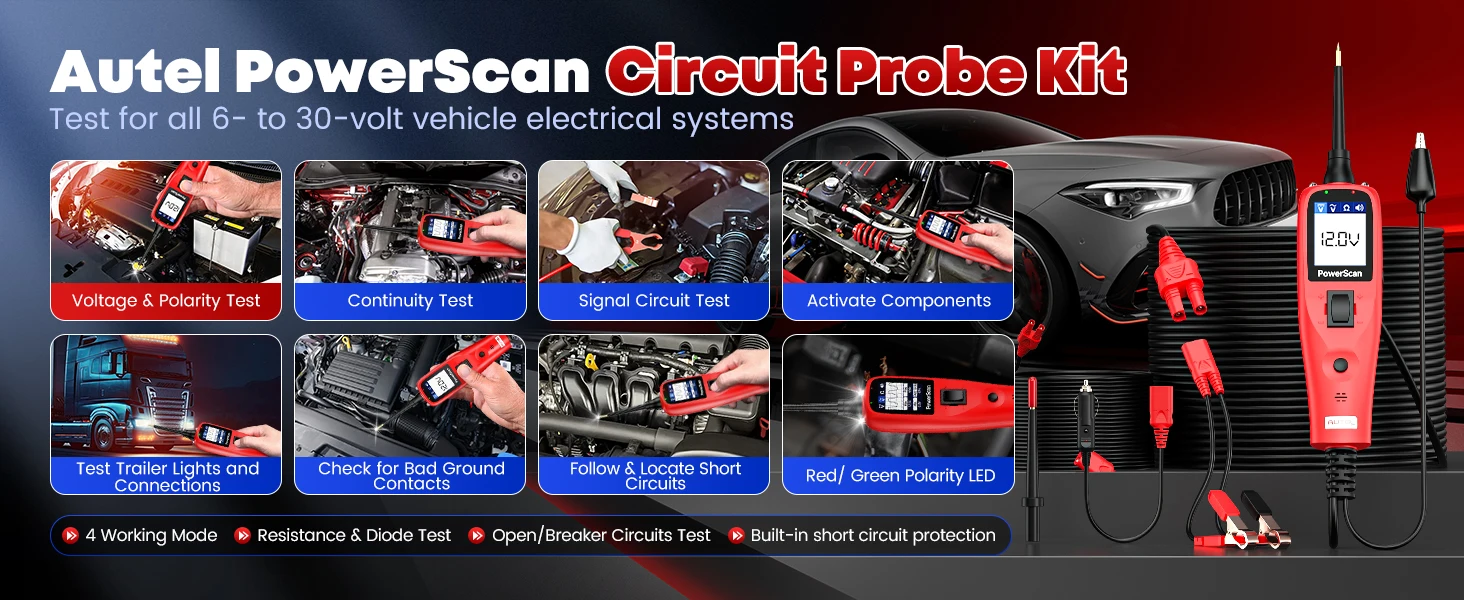

Autel PowerScan PS100 All-IN-One Power Circuit Tester Kit:

Autel PS100 Circuit Tester is most accurate power circuit probe tester yet, test all 6-30 volt vehicle electrical systems. It supports ✅Voltage&Polarity Test✅Continuity Test✅Signal Circuit Test✅Components Activate✅Check Bad Grounding✅Locate Short Circuits✅Circuit Breaker Protection, etc. Also, Autel Power Circuit Tester has long Cables (itself 20ft & extra 20ft cable), comes with a cigarett.e lighter plug. Intuitive interface with ergonomic design makes it be best gif.t for all novice drivers or pro circuit repairers.

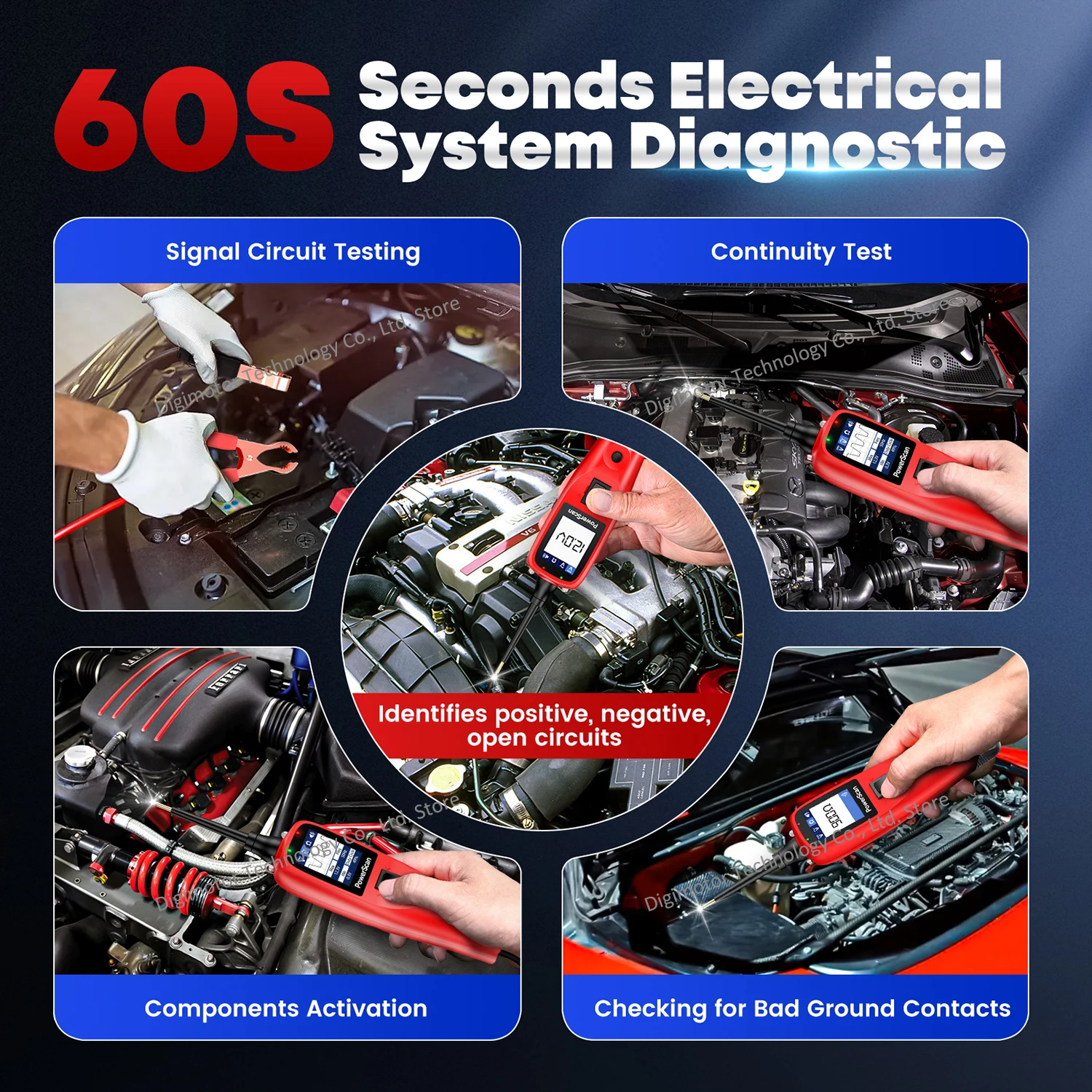

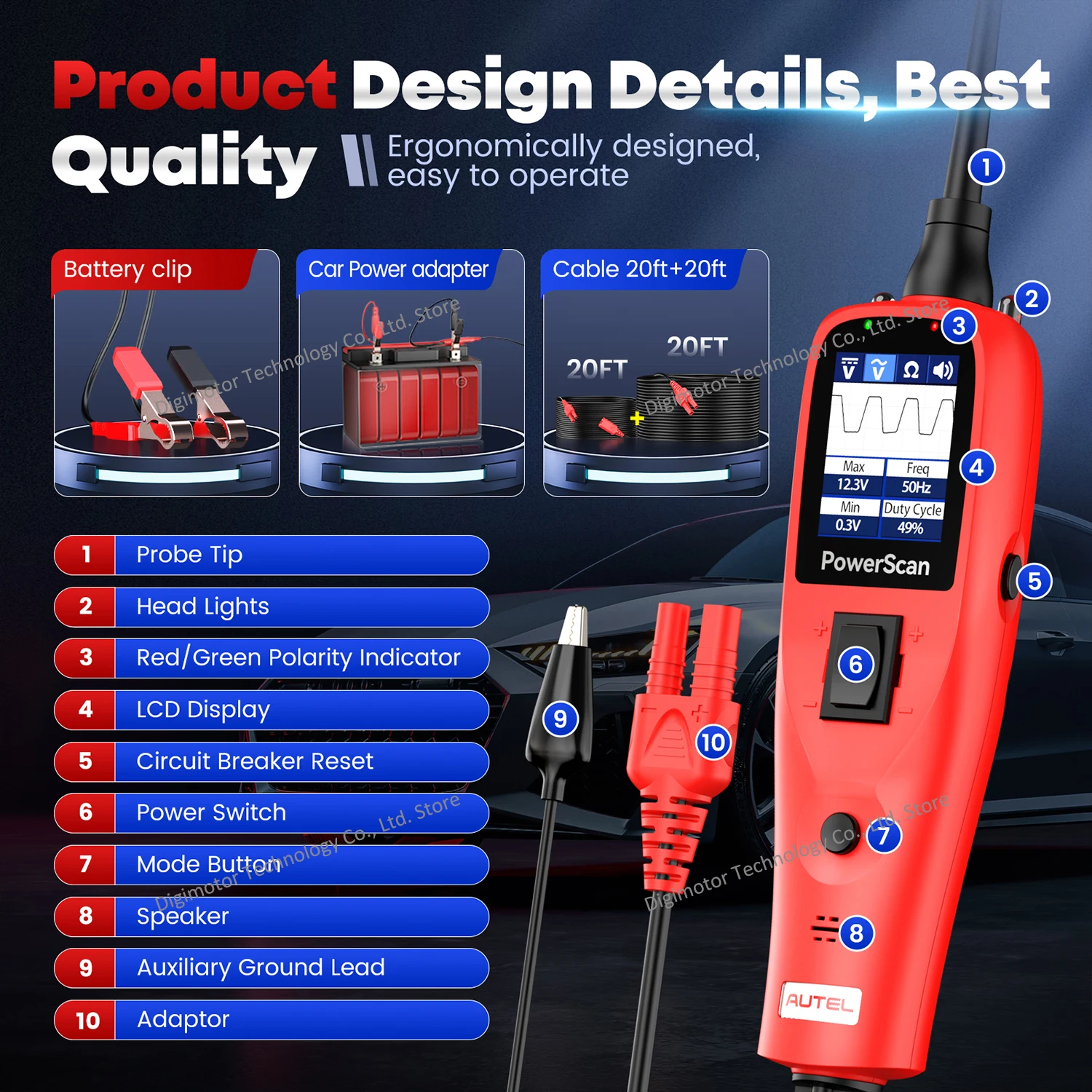

Autel PowerScan PS100 Features:

1. Performs every type of service including power injection, measurement, ground testing, polarity checks, continuity testing and components activation.
2. Easy to read AVOmeter allows you to read voltage, current and resistance at the fingertip.
3. With a flip of the power switch, you have an instant hot/ground lead for powering up electrical components like cooling fans, relays, etc.
4. Simultaneously uses the hot lead and the ground lead to activate components right in your hand.
5. Instantly identifies positive, negative and open circuits.
6. Tests for bad ground contacts instantly, allowing you to follow and locate shorts fast without wasting fuses.
7. Instantly checks continuity of switches, relays and diodes.
8. Circuit breaker protected.
9. Built-in Flashlight enables you to work in the dark.
10. Audio tone indicator allows for no-look menu scrolling once users are familiar with menu tone assignment.
11. 20ft (extendable) cable provides excellent accessibility to test along the vehicle.
12. Extremely easy to use and highly reliable.

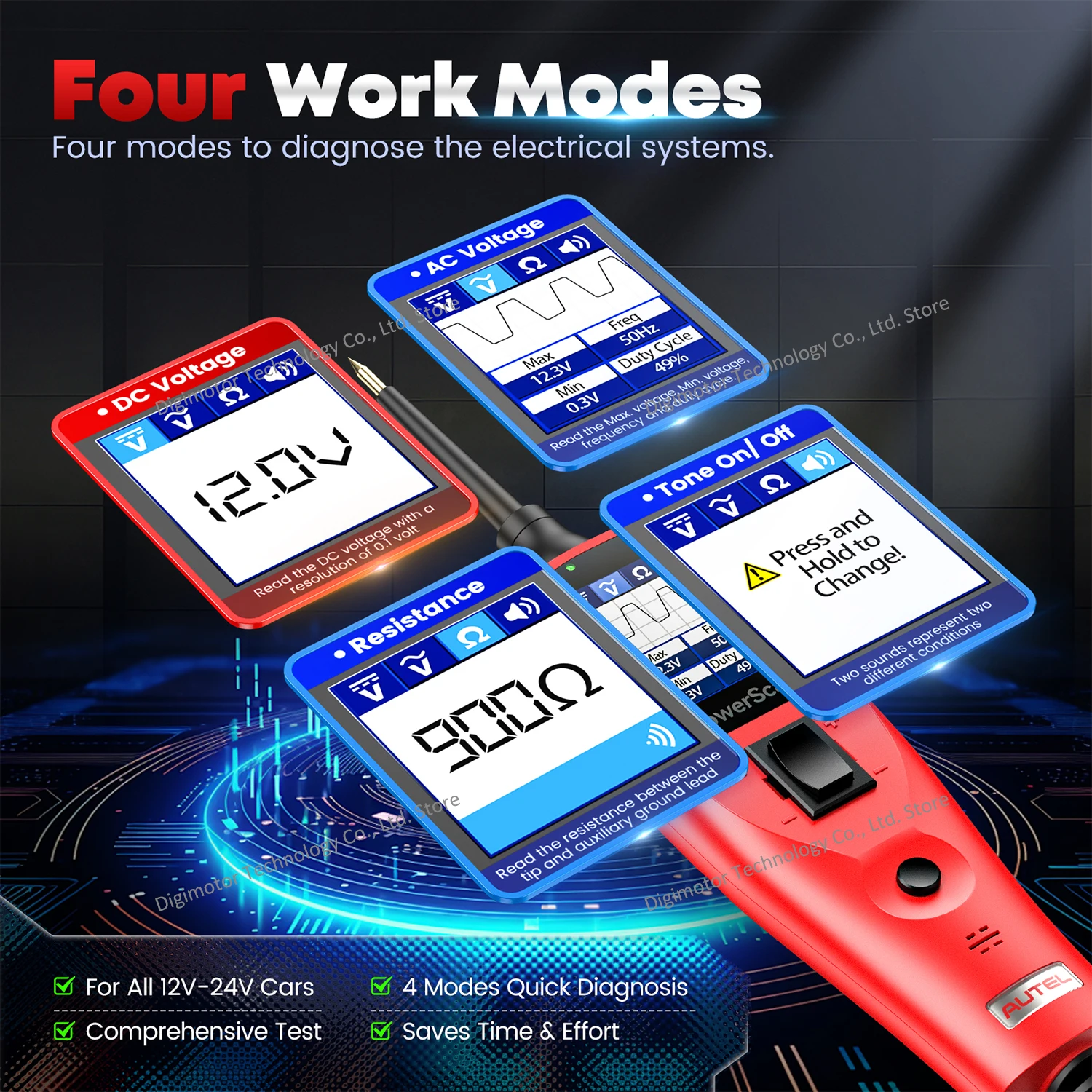

4 Advanced Modes—Quick& Accurate:

4 modes via Mode Button. Just Contact probe to circuit, LCD instantly displays results: 1️⃣DC voltage: read the DC voltage with a resolution of 0.1 volts. 2️⃣AC voltage: read the Max. voltage, the Min. voltage, frequency, and duty cycle, shows the modulation from the ECM to an Alternator wire to see if the ecm is commanding the alternator on. 3️⃣Resistance: read the resistance between the tip and auxiliary ground lead, you can clearly check fuse/line continuity, pinpoint open circuits & verify switch functions. 4️⃣Tone On/Off: it can indicate the tester's on/off status, You can turn it off to avoid ear interference from noise during testing.

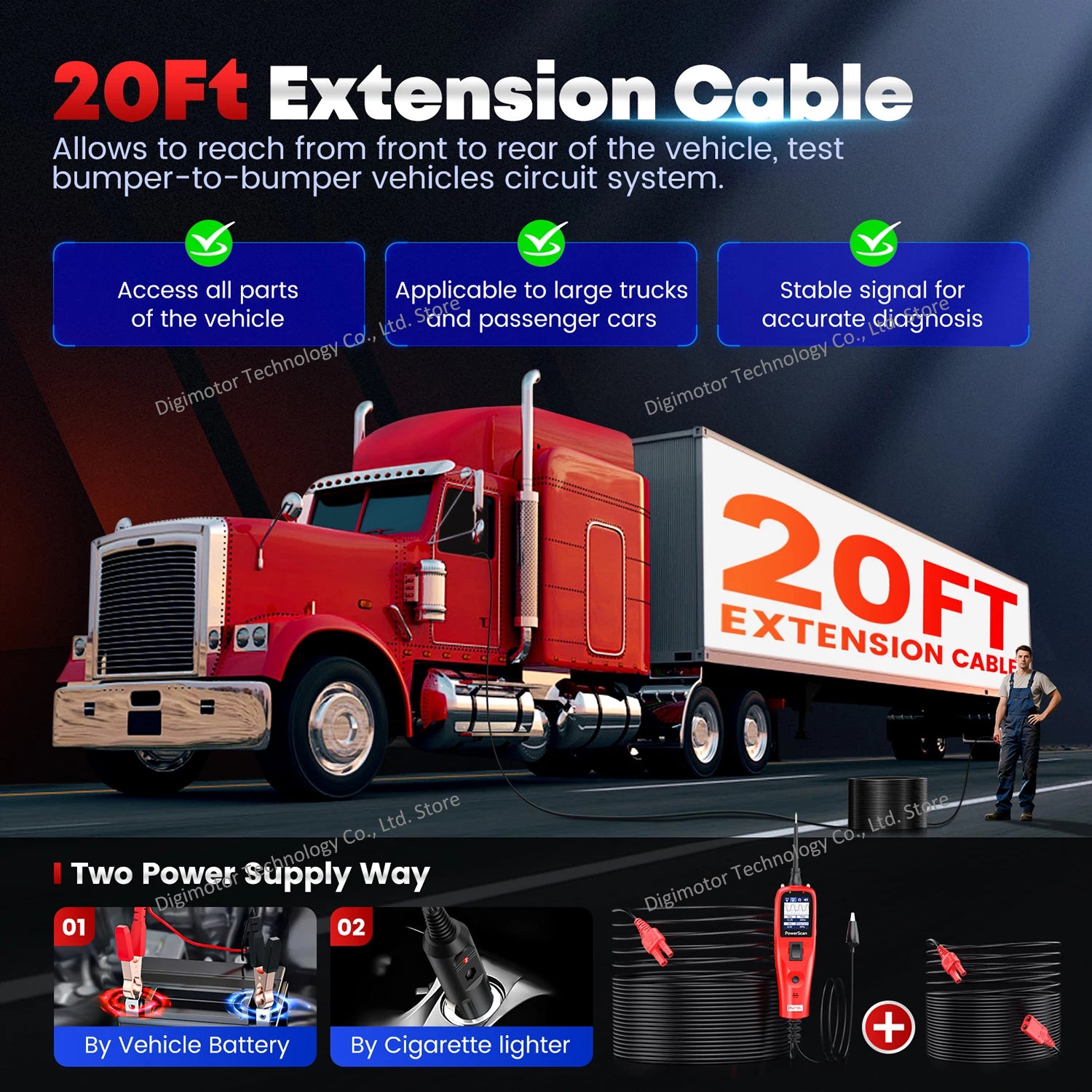

20ft Extension Cable:

Autel automotive electrical tester comes with extra 20ft extension cable in addition to its own 20ft cable, allowing you to access any position of the vehicle and test it. Ideal for trailer wiring, it can be tested along the vehicle without having to find a suitable ground point. The built-in flashlight is convenient for detection, even in the dark or dim environment, it can provide the best view for who need to work in night.

Compnent Activation Function:

Autel PS100 Electrical Fuse Tester will test the positive, negative, and open circuit easliy, also testing for continuity, diagnosing circuit failures, checking good and bad grounds, easy to read AC/DC current activating components on and off the vehicle, sensing MIN /MAX voltage, etc. By generating activation signals for the components, Autel Circuit Tester Automotive Tool can judge whether the components are in good condition, such as lights, motors, wipers, radiator fans, relays, etc. No jumper wires are required, making the process of diagnosing your car's circuits safer, faster, easier, and less prone to error.

Pro Continuity Tester & Signal Circuit Tester:

PS100 easily locates wire breaks and checks ground quality.1️⃣ Resistance Mode: Connect the probe tip and ground lead. A solid connection reads “0.0Ω” with a green LED. “OL” means an open circuit. You can even pierce insulation to test without disconnecting wires.2️⃣ Power Switch Method: Applies voltage to check for ultra-low resistance—great for ground tests. What to do when faced with reading a DTC to learn that a sensor may have a problem? 📶Signal Test: In AC mode, connect to the sensor’s signal wire and ground. As you operate the sensor, view live Max/Min voltage, frequency, and duty cycle on the LCD to confirm proper function.

Short Circuit Troubleshooting & Built-In Overload Protection:

As a good relay tester, the PS100’s resettable circuit breaker helps quickly locate short circuits—just apply voltage along the line using its highly sensitive probes to pinpoint the issue, saving both fuses and money！ A built-in 10 Amp breaker also protects against overloads, cutting power and sounding a buzzer if limits are exceeded. The circuit breaker will trip if it becomes overloaded to protect the battery and give a buzzer warning. When the circuit breaker is tripped, the Electrical Probe Tester will NOT be able to conduct battery current to the tip even when the power switch is pressed—until it resets.

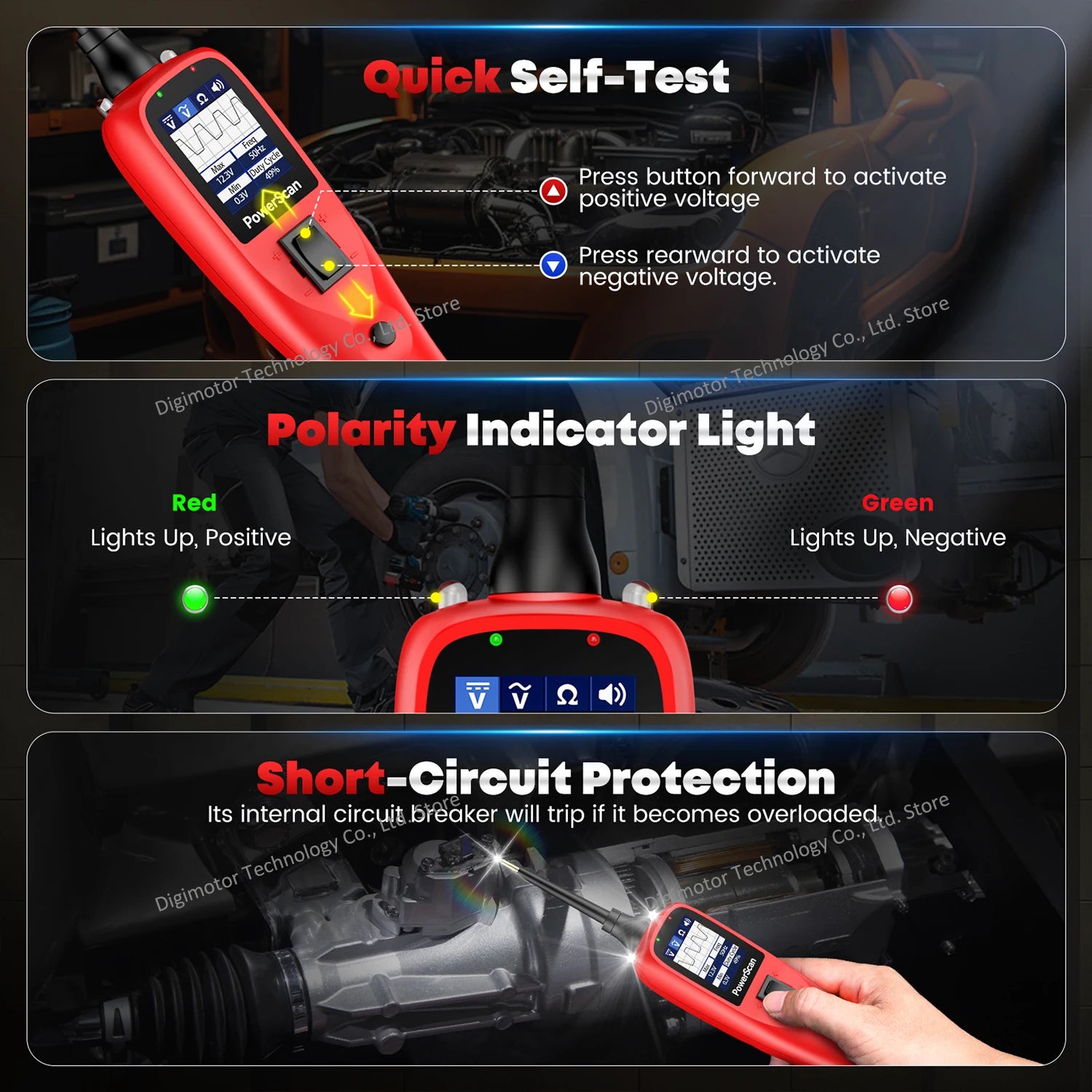

Quickly Identify Polarity & Highly Sensitive Probe:

Autel PS100 Automotive Circuit Tester instantly checks component continuity and identifies positive, negative and open circuits. When the positive terminal is connected, the red LED test light is on, accompanied by a beep. When the negative terminal is connected, the green LED is on, along with low pitched tone. If it is an open circuit, the LED light will not light. By using red/green LEDs (illuminated only within ±0.8V) alongside the LCD reading, the PS100 provides quick voltage drop detection—turning a simple polarity check into a reliable diagnostic tool. The sharp stainless steel probe easily pierces wires and reaches tight areas.

Autel PowerScan PS100 with Wide Coverage:

Autel PS100 Automotive Circuit Teste can be used to test almost all 12V-24V electric devices including motorcycle, motorboat, large trucks and so on. Autel PS100 is a must have tool for every technician looking for a fast and accurate solution to electrical system diagnostics.

Specifications:

DC Voltage Range: 0-65V +1 digit
Resistance Range: 0 – 200 KΩ
Frequency Response of Tone: 0Hz to 10Khz
Circuit Breaker Rating Current: 1 – 10 Amp
External Power: 12.0 or 24.0 V power provided via vehicle battery
Display: TFT color display (160 x 128 dpi)

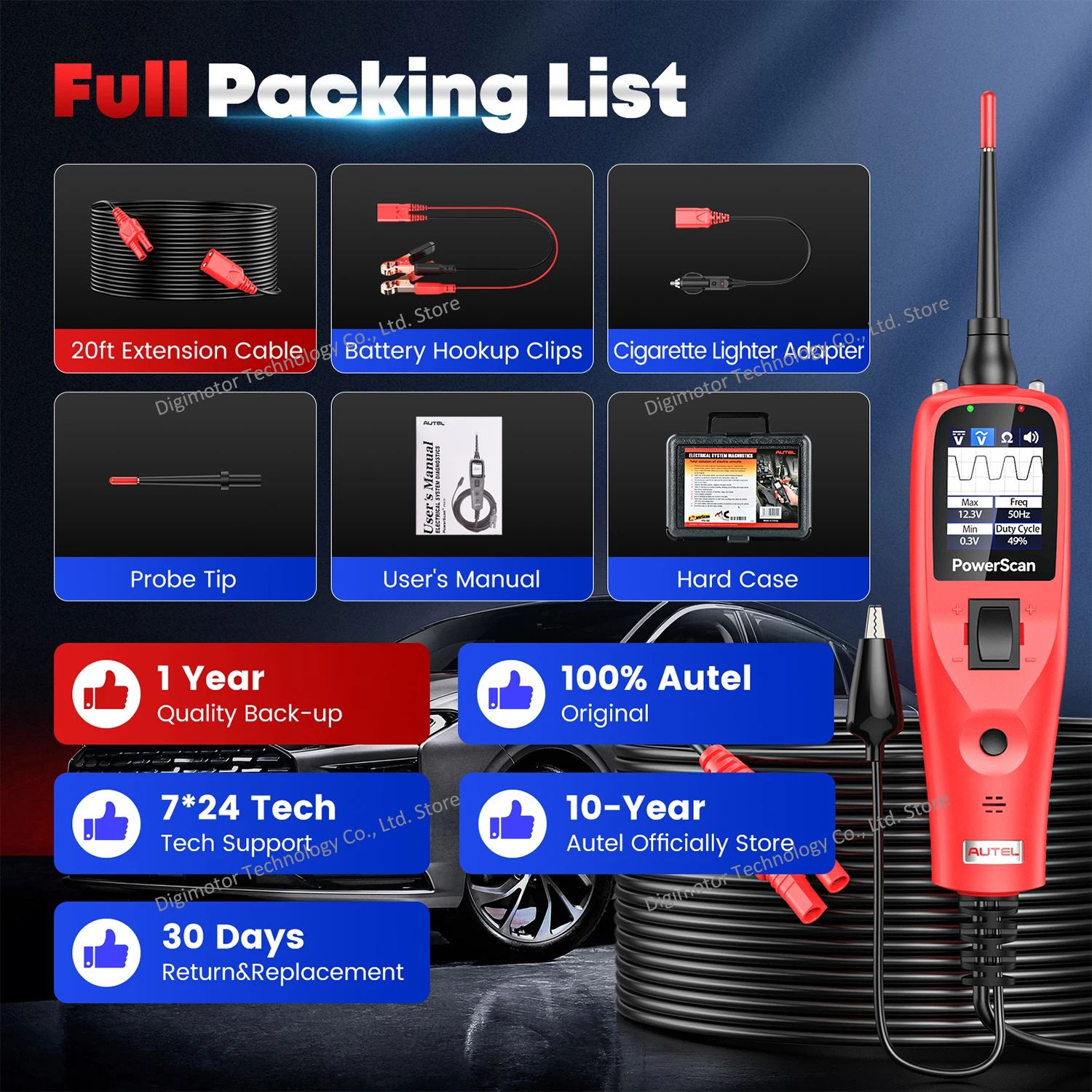

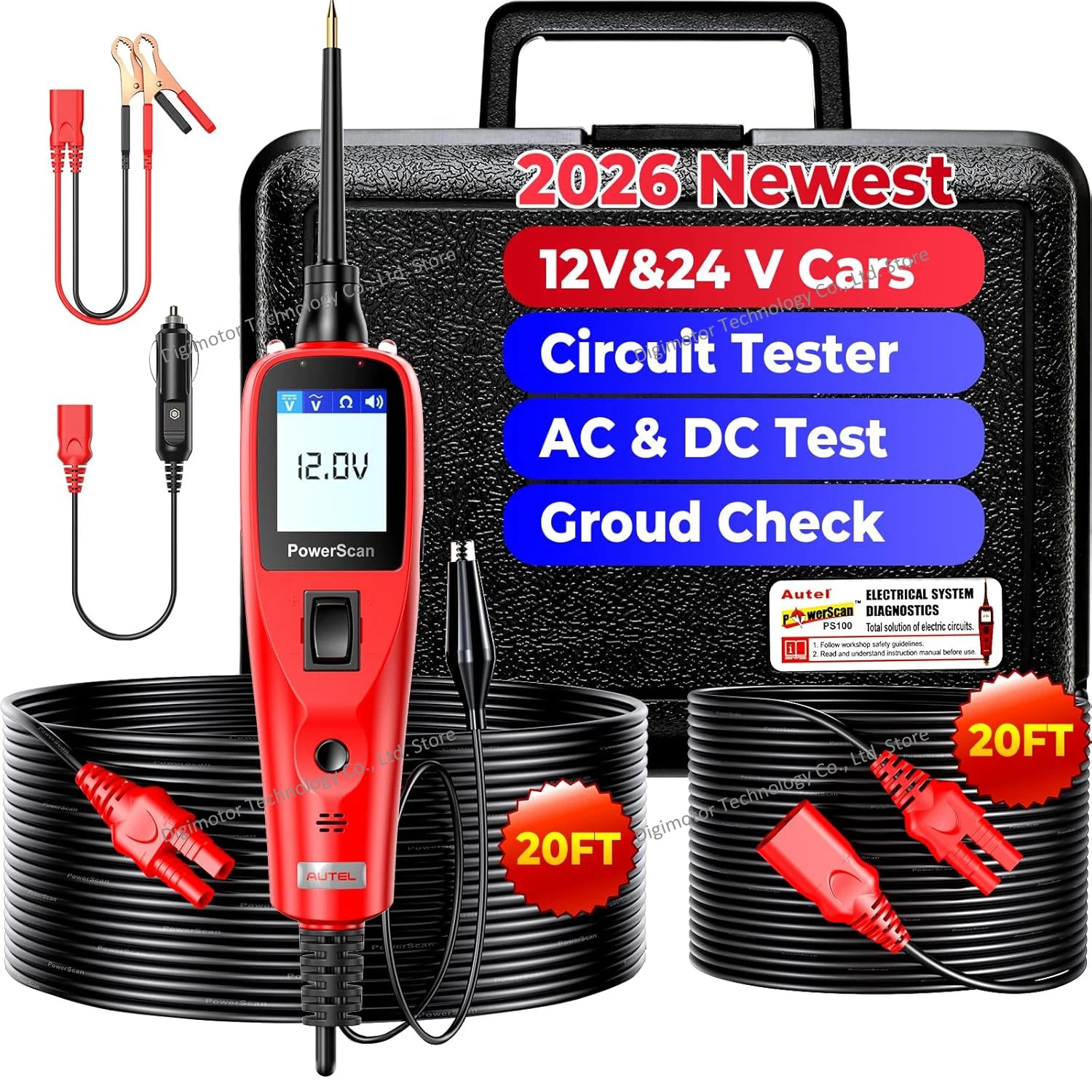

Package Including:

1* PowerScan
1* 20ft. extension cable
1* Rugged blow molded case
1*Probe tip
1* Battery clips
1*Ciga-rette lig-hter adapter
1*User's Manual
