FNIRSI BTM-24 12V/24V Car Battery Tester 0-2000 CCA Automotive Battery Load Tester Cranking Charging Circut Diagnostic Tools

Name: FNIRSI BTM-24 12V/24V Car Battery Tester 0-2000 CCA Automotive Battery Load Tester Cranking Charging Circut Diagnostic Tools
Brand: FNIRSI
SKU: 14:175#BTM-24;200007763:201336100
Price: 69.25 USD
Availability: InStock

$69.25 $103.25

SPECIFICATIONS

Battery Included: no

Brand Name: FNIRSI

CCA Test Range: 2000CCA

Certification: CE

DIY Supplies: Electrical

High-concerned chemical: None

Language: CN, EN

Model Number: BTM-24

Origin: Mainland China

Power Source: None

Screen material: 2.4-inch

Semi-finishedproduct: No

Type: Vehicle Battery Tester

Voltage Range: 12-24V

BTM-24 is a battery tester that ensures the stable operation of various types of batteries. It is a professional device that can accurately detect multiple key indicators of batteries and provide a scientific basis for judging their health status. It is mainly used in various occasions such as the automotive industry, power industry, communications industry, industrial equipment, and medical equipment.

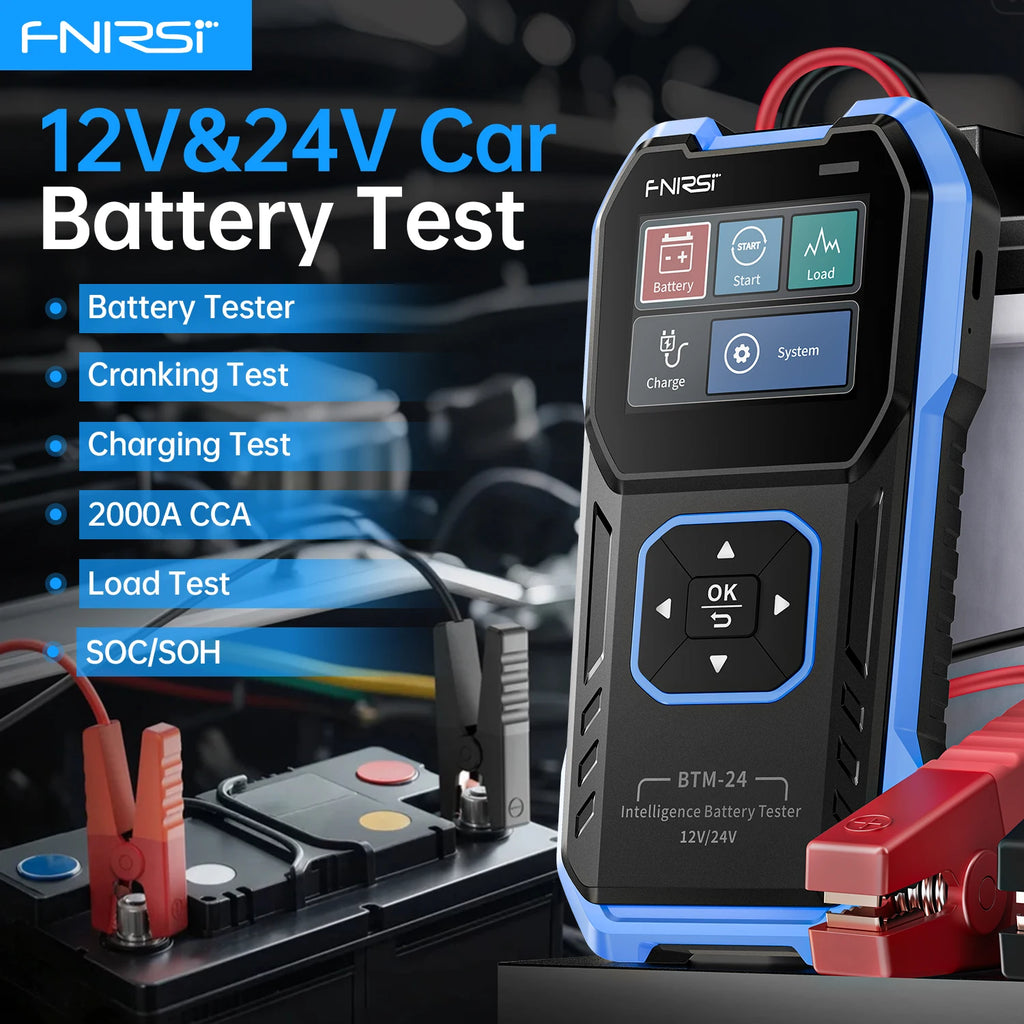

Key Features:

1. The main interface of the battery tester is intuitively designed, integrating five major functions: battery measurement, startup measurement, load measurement, charging measurement and system settings. The device is comprehensive in function, user-friendly in interface and quick in operation.

2. Comprehensive and accurate battery detection: The battery tester is equipped with a clip, which can accurately detect the battery voltage, support 7 detection standards, and detect the internal resistance of the battery, so as to more comprehensively evaluate the battery status.

3. Startup performance evaluation: Equipped with a startup measurement module, based on the judgment of the reference voltage standard, it provides a reliable basis for the health of the vehicle startup system.

4. Convenient and practical system settings: The system settings are powerful, supporting simplified Chinese and English language switching, day and night mode theme switching, and restoring factory settings to meet the personalized needs of different users in different environments.

Basic Parameters

1.Voltage Range: 12V / 24V

2.CCA Test Range: 0 – 2000 CCA (Selectable)

3.Screen material: 2.4-inch color screen

4.Language: Chinese, English

5.Product size:80.52*155.76*28.15mm

6.Bare weight: ≈479g

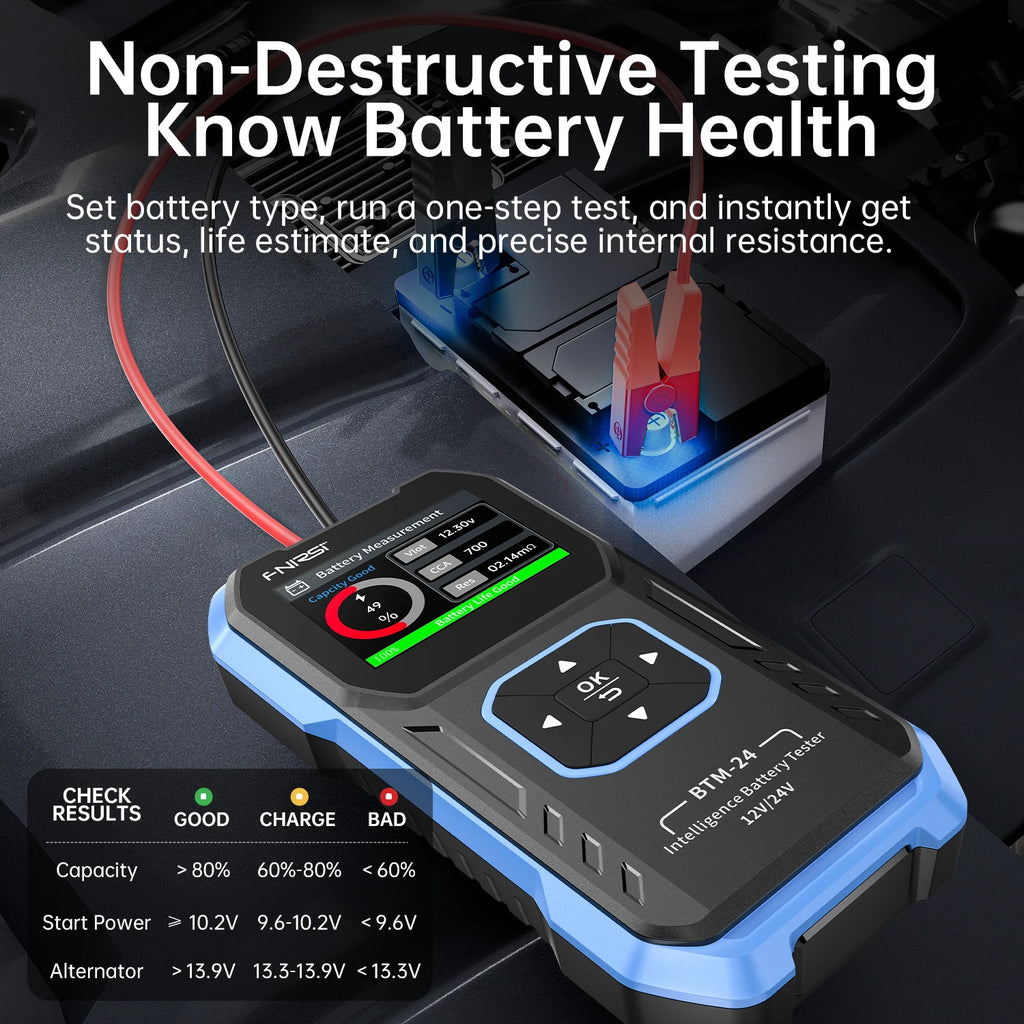

Battery test parameters

1.Battery life is low: 0-60%

2.Battery life is average: 60%-80%

3.Battery life is good: 80%-100%

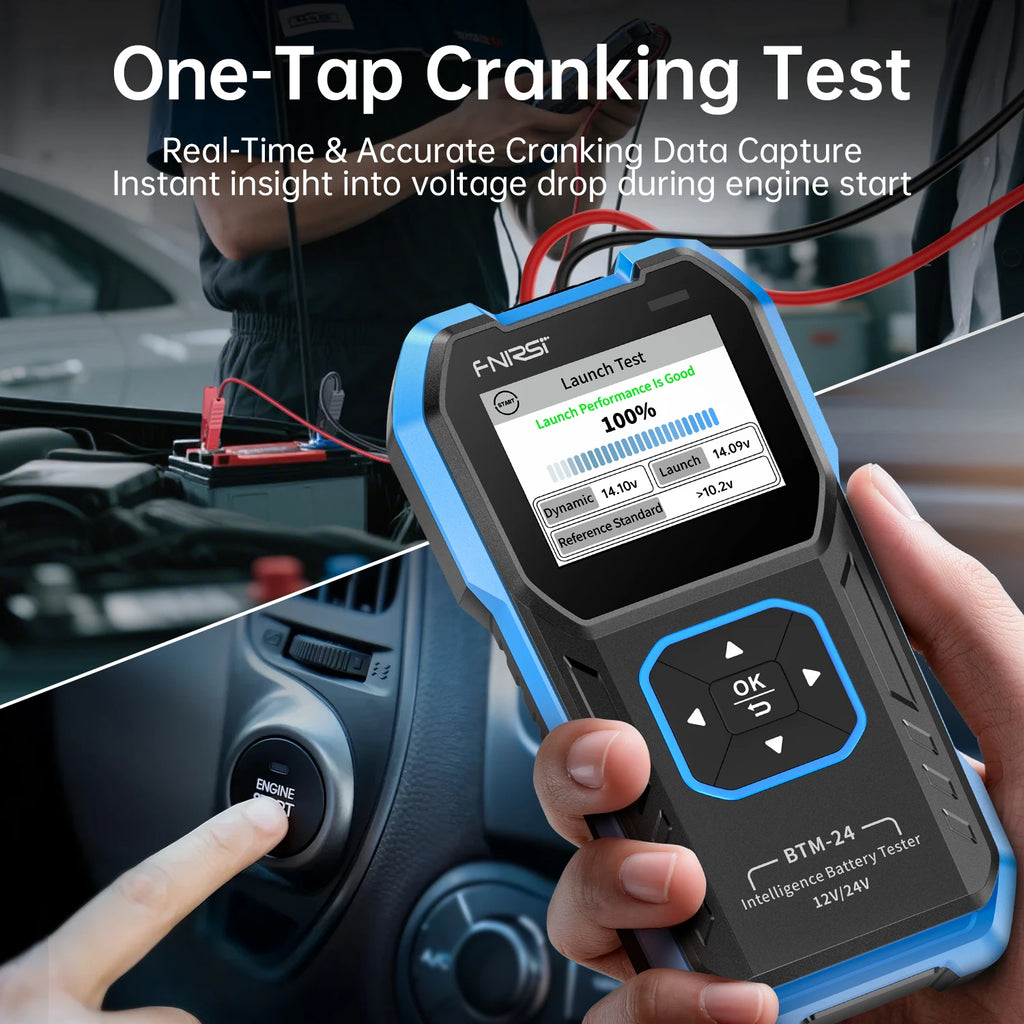

Startup test parameters

Current startup performance :

good :Startup voltage is above 10.2V

poor: Startup voltage is 9.6-10.2V

extremely poor: Startup voltage is less than 9.6V

Load test parameters

1.Normal range: Minimum voltage is greater than 13.4V (24V system is greater than 25.6V)

2.Battery voltage is less than 12.8V, please check the generator and wires: Minimum voltage is less than 12.8V (24V system is less than 25.6V), need to check whether the generator belt is worn and whether the wire is short-circuited

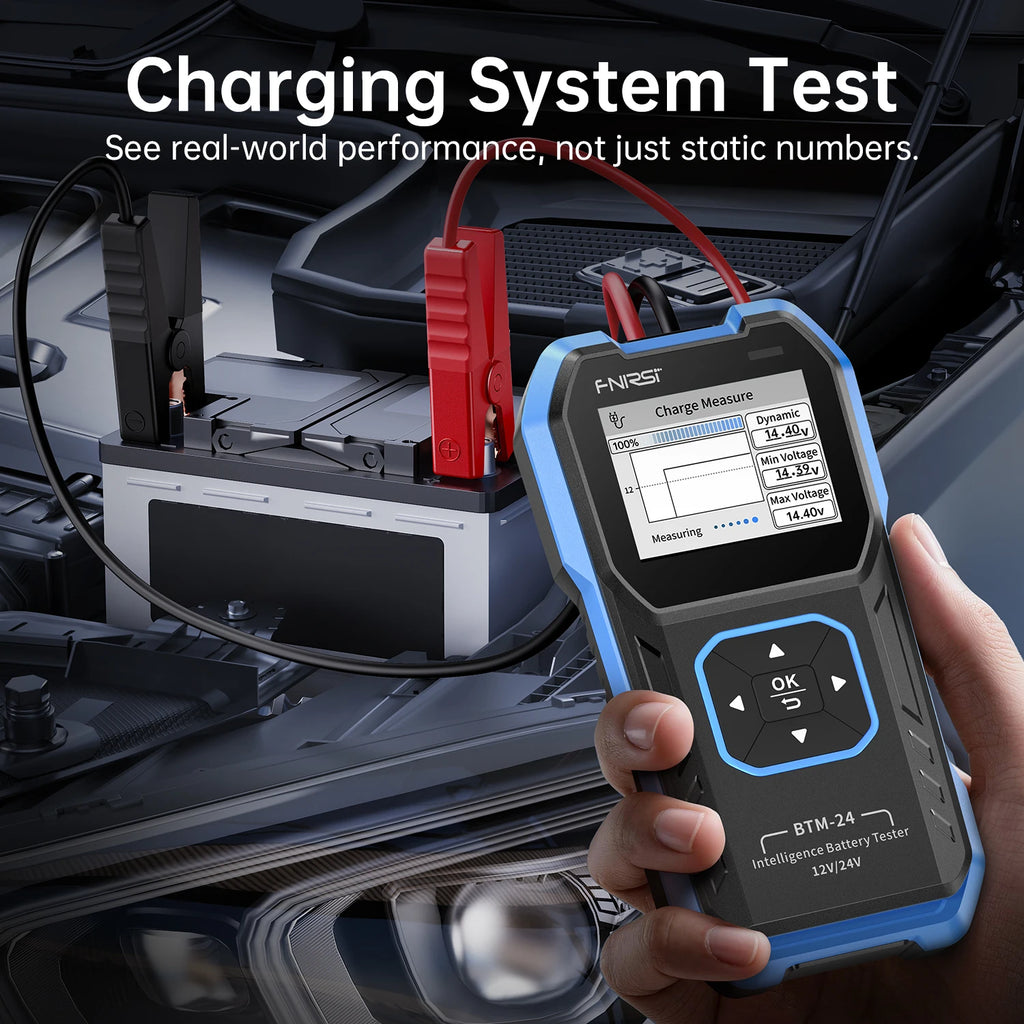

Charging test parameters

1.Battery voltage is too high, please check the voltage regulator: Maximum voltage is greater than 15.0V (greater than 30.0V for 24V system), need to check the voltage regulator

2.Battery voltage is too low, please check the connection points, wires and generator: Minimum voltage is less than 13.3V (less than 26.6V for 24V system), check the connection points, wires and generator

3.Battery voltage is normal:

Generator performance

excellent: Dynamic voltage>13.9V (24V system>27.8V)

good: Dynamic voltage>13.7V (24V system>27.4V)

normal: Dynamic voltage>13.5V (24V system>27.0V)

observed: Dynamic voltage>13.3V (24V system>26.6V)

Displacement vehicle test parameters

EHICLE DISPLACEMENT 1200~1600 CC: 350

VEHICLE DISPLACEMENT 1600~2000 CC: 500

VEHICLE DISPLACEMENT 2000~3000 CC: 650

VEHICLE DISPLACEMENT 3000cc and above: 750
