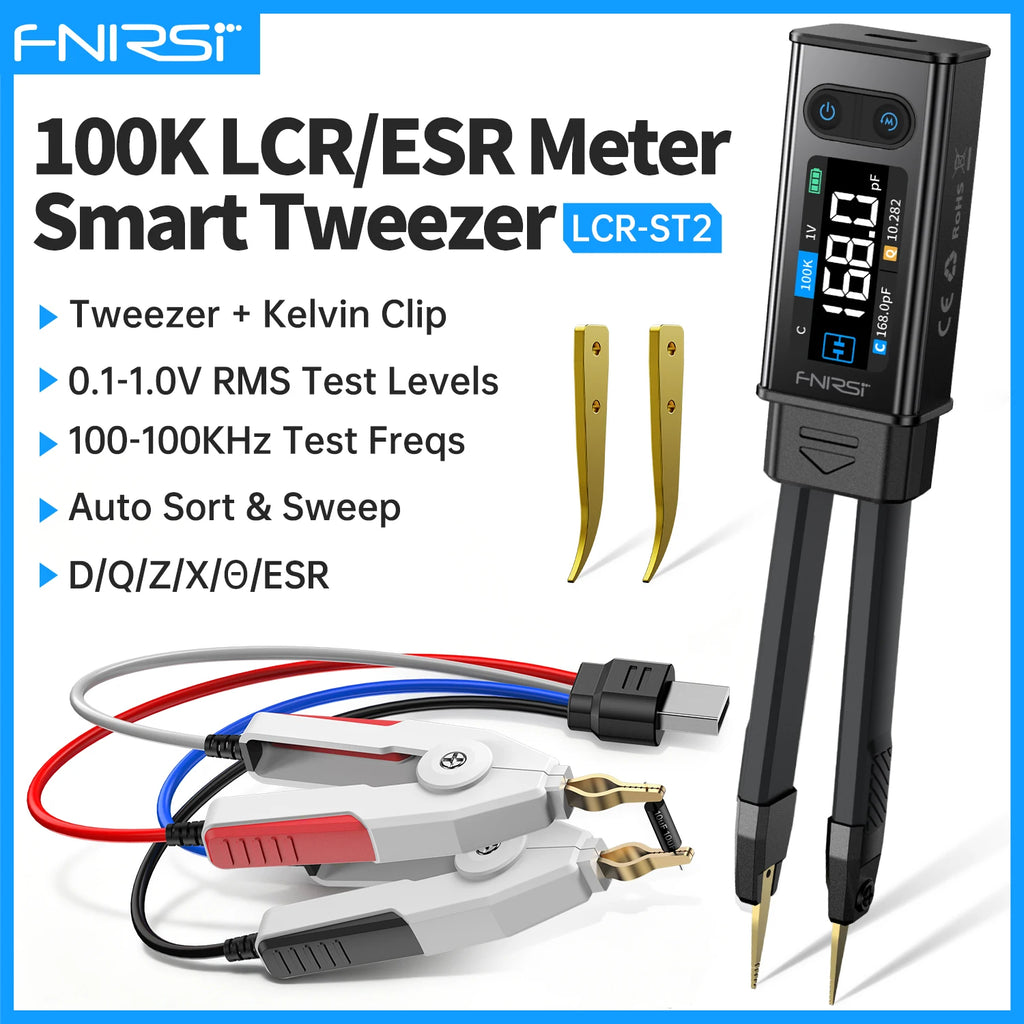

FNIRSI LCR-ST2 2-in-1 Digital Tweezer Bridge LCR ESR Meter SMD Test Kelvin Clip Electronic Component Multifunctional Tester Tool

Name: FNIRSI LCR-ST2 2-in-1 Digital Tweezer Bridge LCR ESR Meter SMD Test Kelvin Clip Electronic Component Multifunctional Tester Tool
Brand: FNIRSI
SKU: 14:10#LCR-ST2 Set2;200007763:201336100
Price: 79.32 USD
Availability: InStock

$79.32 $113.32

SPECIFICATIONS

AC Voltage: 30

Auto power-off: Never/ 5/15/30min

Battery: 300mAh lithium battery

Battery Included: Yes

Brand Name: FNIRSI

Certification: CE

Charging Port: Type-C

DC Voltage: 30

DIY Supplies: Electrical

Dimensions: 31x170.7x20.3mm,31x170.7 x20.3mm

Diode forward voltage detection: ≤0.7V

Display: 1.47-inch HD color screen

Display Type: Digital Display

FNIRSI Model: LCR-ST2

Frequency sweep: 100Hz - 100kHz

High-concerned chemical: None

Language: English / Chinese

Measuring Capacitance Range: 1pF-22mF

Measuring Inductance Range: 1uH-10H

Measuring Resistance Range: 10mΩ-10MΩ

Model: LCR-ST2

Model Number: LCR-ST2

Operating Mode: Auto Range

Operating Temperature: 0 - 40 ℃

Origin: Mainland China

Voltage range: ±30V

The LCR-ST2 is the latest generation tweezer-type LCR meter developed by our company. It is a multifunctional and portable testing instrument that supports precise measurement of resistance, capacitance, inductance, and diodes, as well as voltage measurement up to 30 V. Equipped with advanced measurement technology, the LCR-ST2 ensures high accuracy and stability.

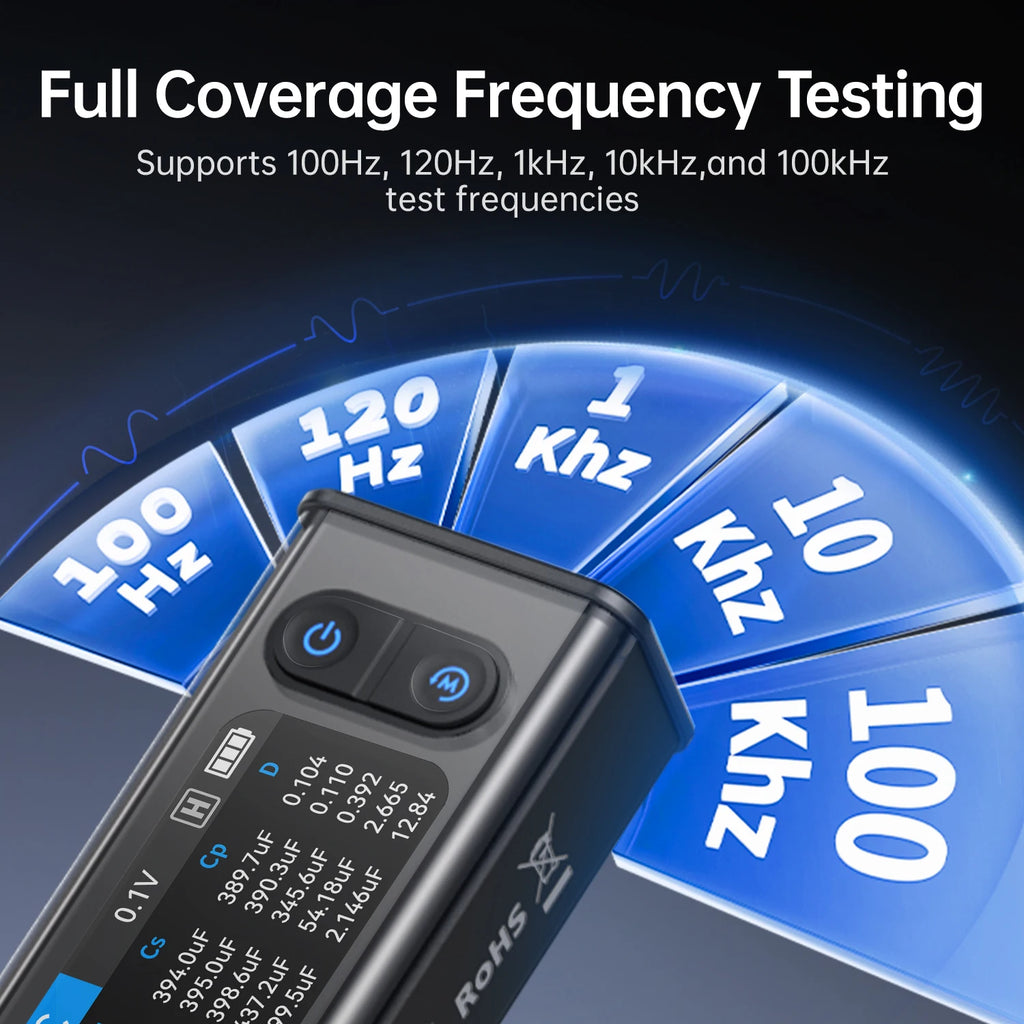

It features a 1.47-inch high-definition color display and magnetic attachment design, enhancing ease of use and portability. A built-in 300 mAh lithium battery provides long operating time, and the instrument supports five test frequencies: 100 Hz, 120 Hz, 1 kHz, 10 kHz, and 100 kHz.

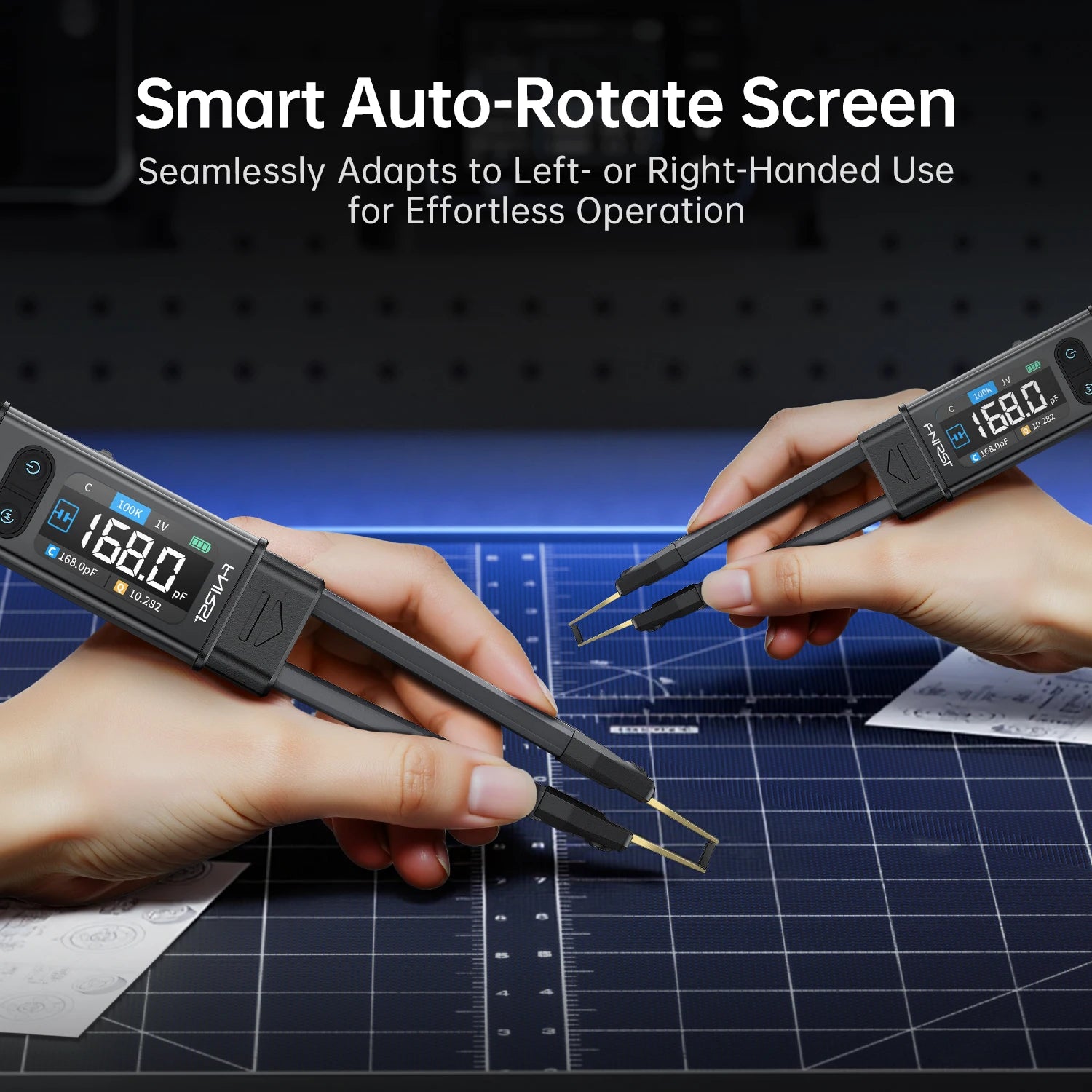

Its unique tweezer-style design is especially suitable for fine operations in confined spaces, allowing quick testing of electronic components. In addition, the LCR-ST2 offers a sweep function that can rapidly scan component parameters across the full frequency range (100 Hz–100 kHz) and obtain multi-frequency data with a single press, enabling accurate component characterization.

The intelligent sorting function automatically classifies and filters components, greatly improving batch testing efficiency. The dual-mode simultaneous display feature allows two measurement modes to be shown on the same screen for direct comparison, making result analysis more intuitive. With its lightweight and portable design, the LCR-ST2 is an indispensable high-efficiency tool for both field engineers and laboratory applications.
