SPECIFICATIONS

Amplitude Range (50Ω): 1mVpp~10Vpp (<10MHz)

Battery Included: no

Brand Name: FNIRSI

Certification: CE

Channels: 2 Independent Channels

DC Offset Range (50Ω): ±5V

DIY Supplies: Electrical

Display: 4.3-inch TFT LCD (480x272)

Frequency Counter Range: 100mHz - 100MHz

Frequency Resolution: 1μHz

High-concerned chemical: None

Max Output Frequency: Up to 60MHz (TSG6020) / 30MHz (TSG3020)

Model Number: TSG3020 TSG6020

Modulation Types: AM, FM, PM, ASK, PSK, FSK, Linear/Log Sweep

Origin: Mainland China

Output Waveforms: Sine, Square, Pulse, Ramp, Arbitrary, Noise, DC

Power Supply: DC 5V2A (Type-C interface)

Sampling Rate: 200MSa/s

Vertical Resolution: 14 bits

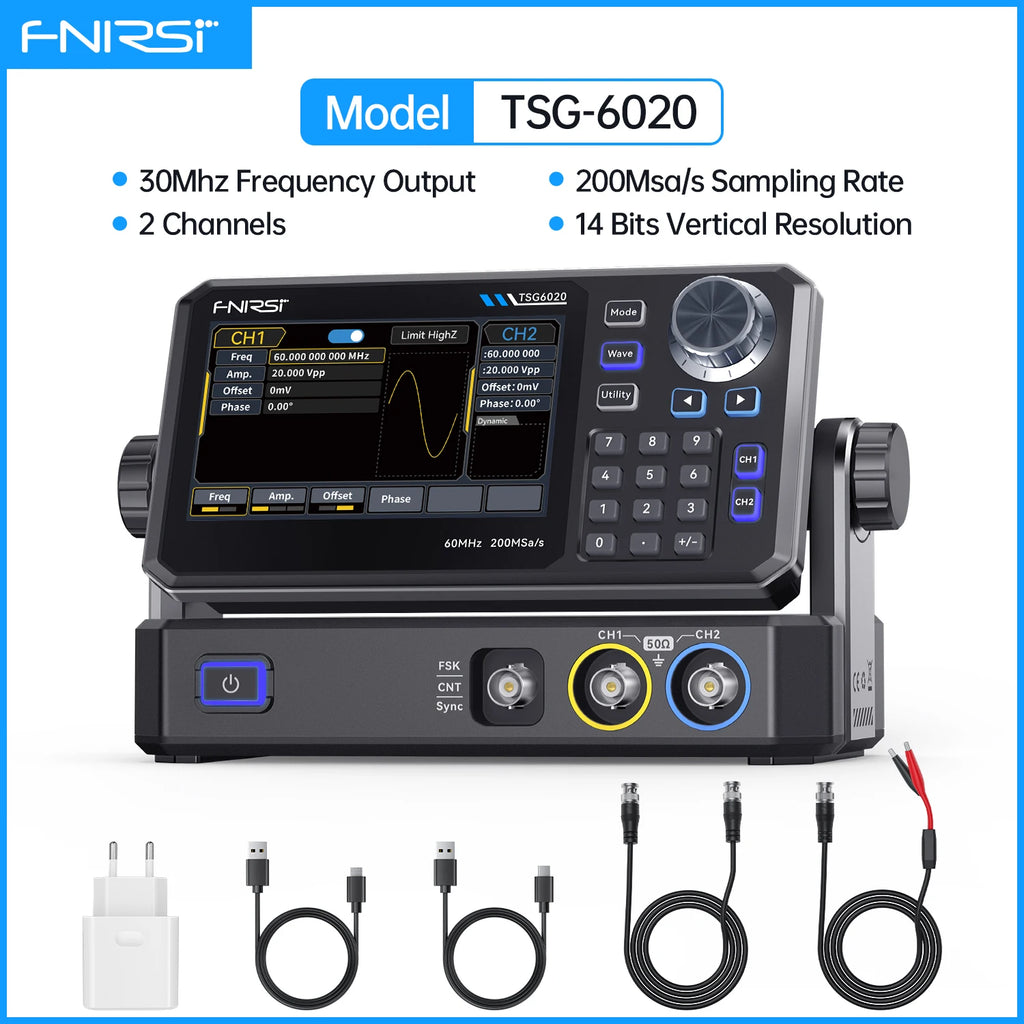

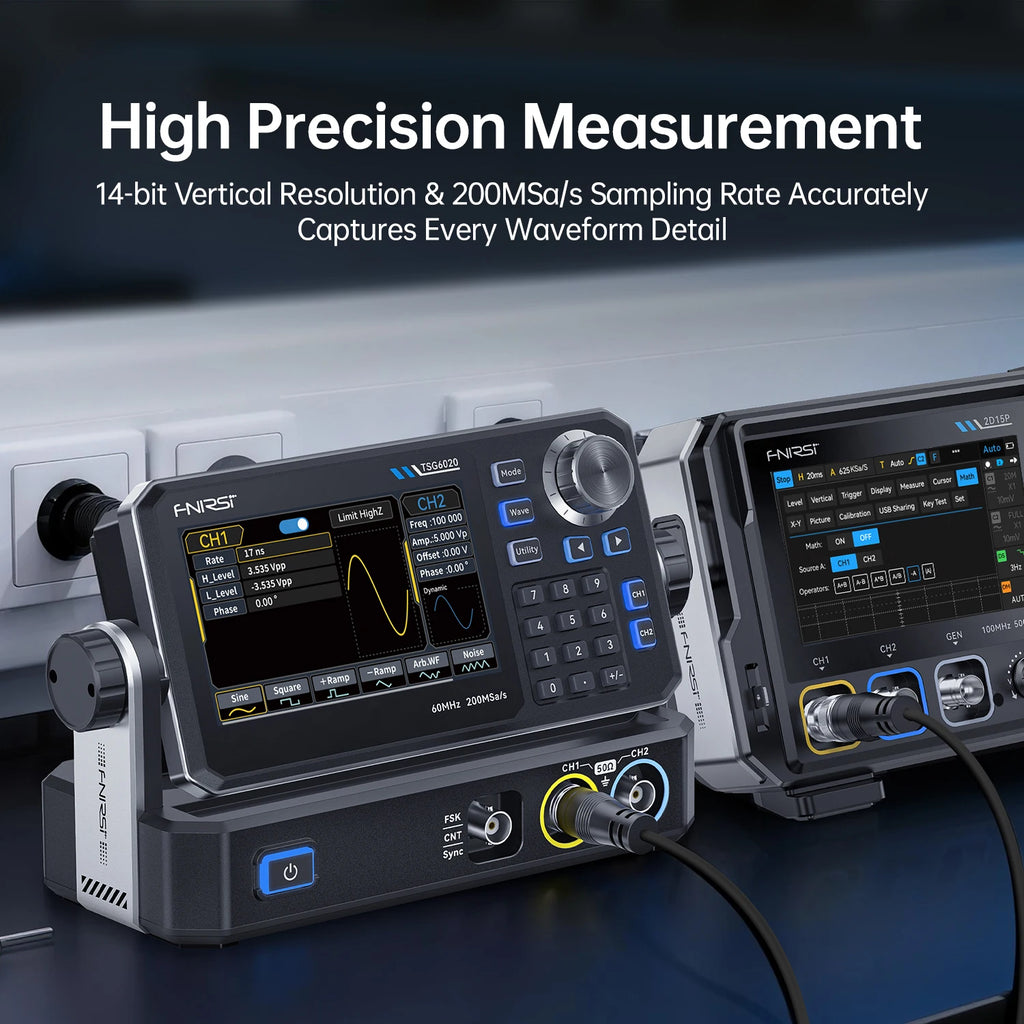

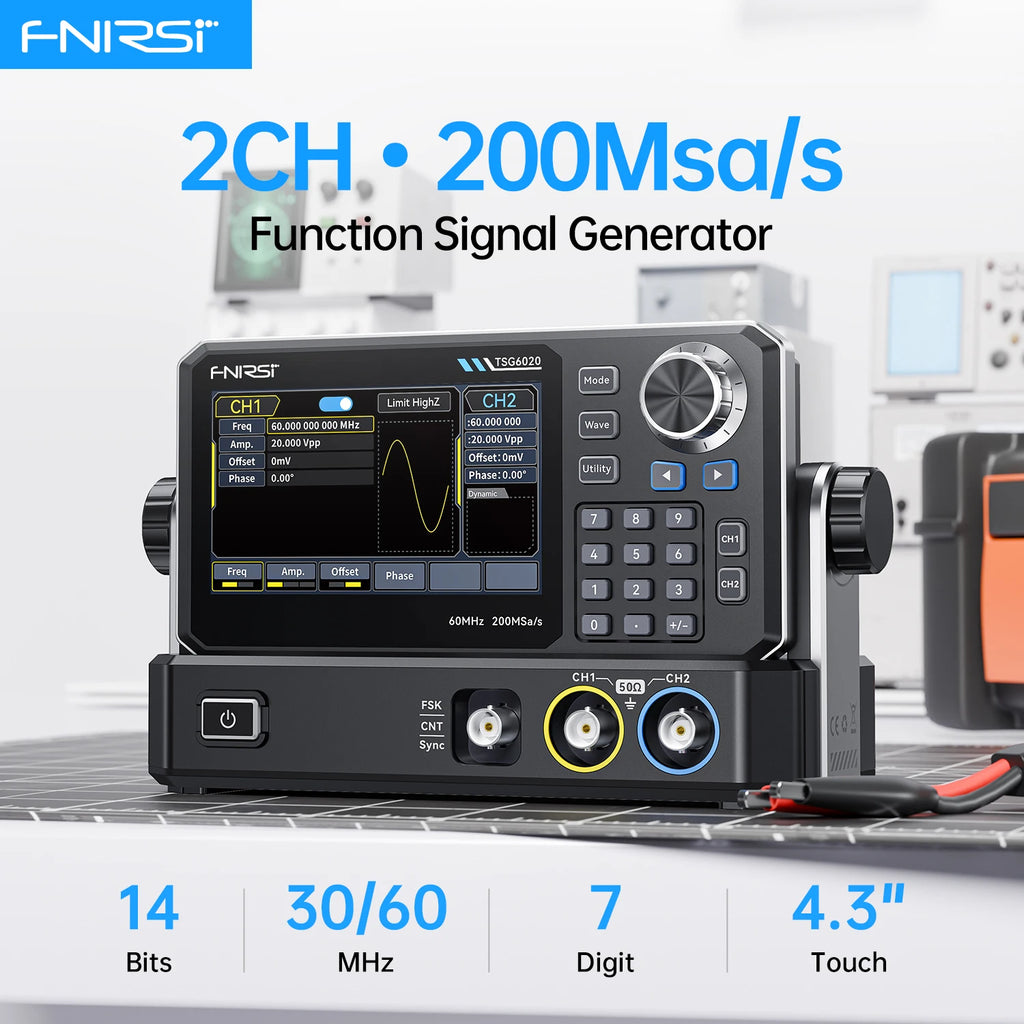

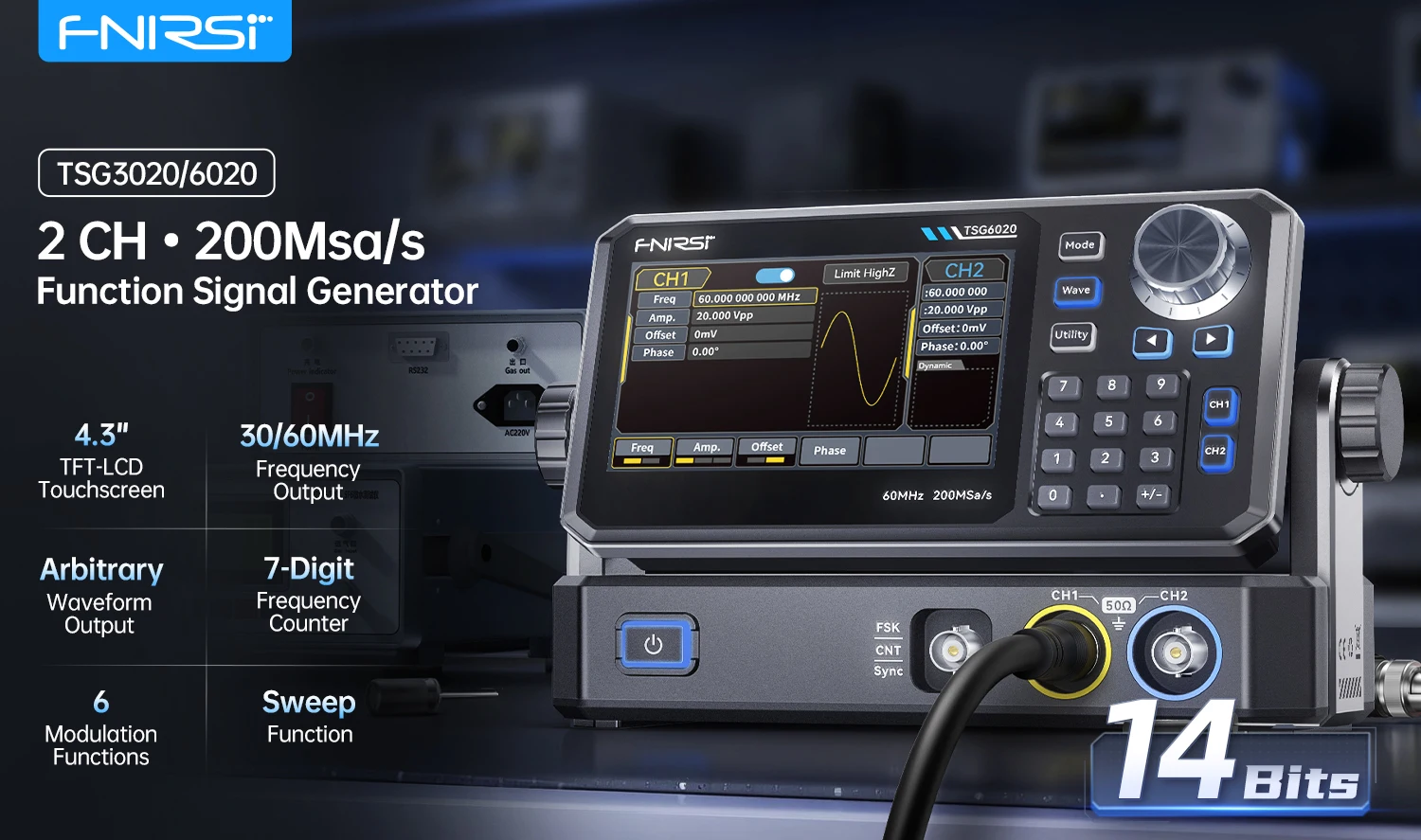

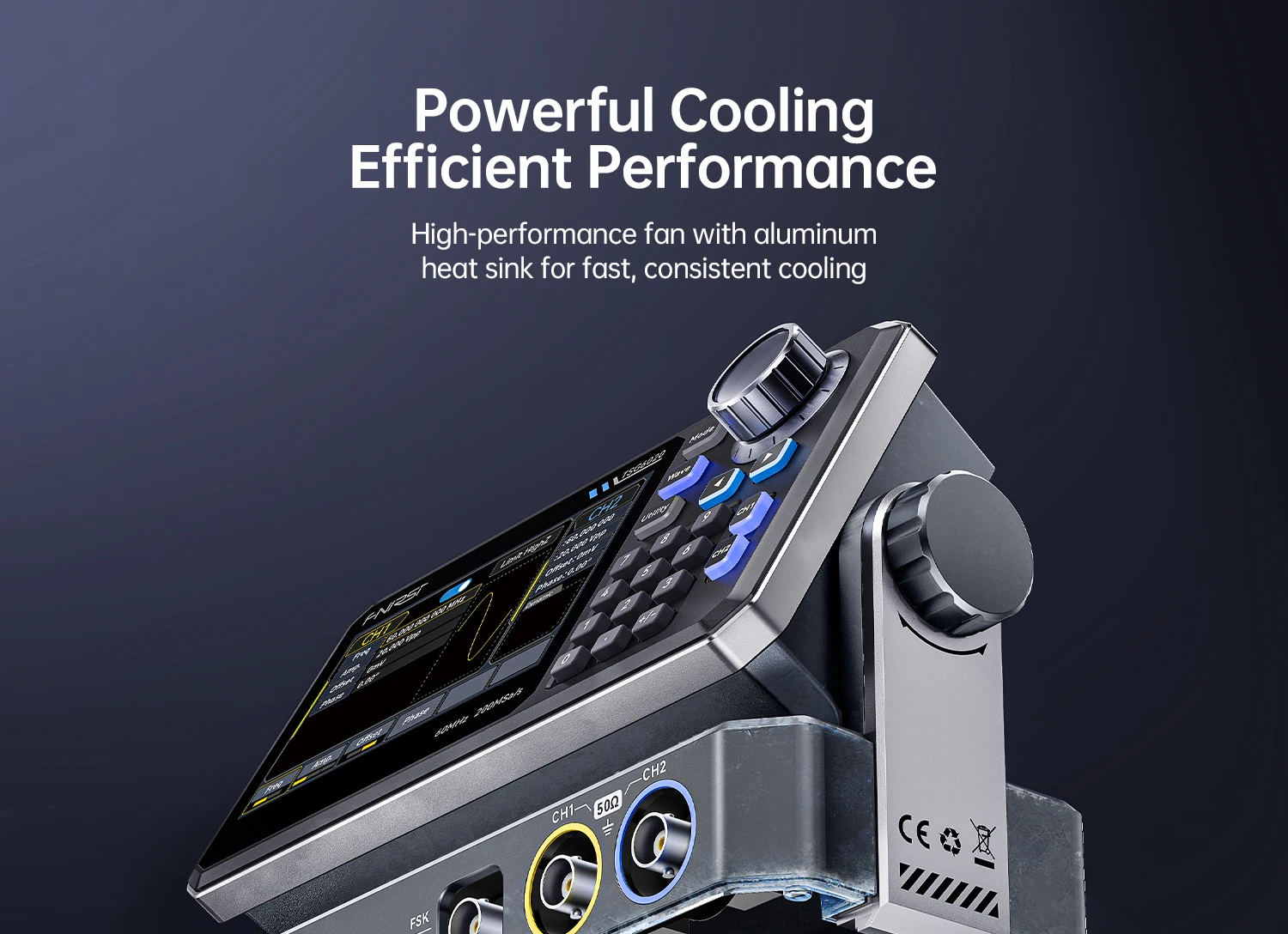

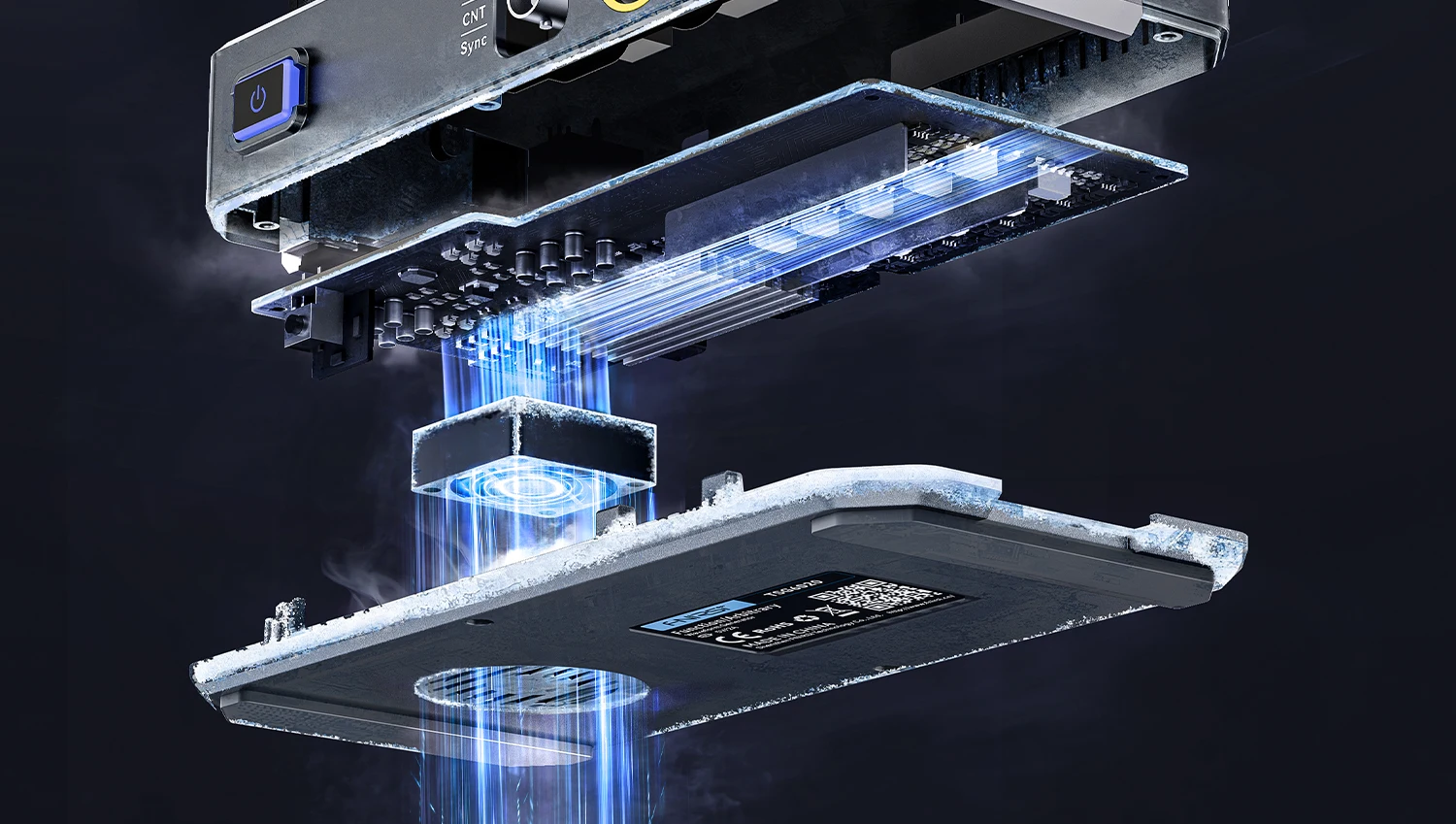

TSG3020/TSG6020 is a dual-channel function and arbitrary waveform generator designed for professional testing, maintenance, education, and R&D applications. It features up to 60MHz output frequency, 200MSa/s sampling rate, and 14-bit vertical resolution, delivering clean, precise, and low-jitter signals.

It supports sine, square, pulse, ramp, Arbitrary, noise, DC output, and provides storage for 24 groups of non-volatile arbitrary waveforms, along with AM/FM/PM/ASK/PSK/FSK modulation, linear/log sweep, and a high-accuracy frequency counter compatible with TTL-level signals.

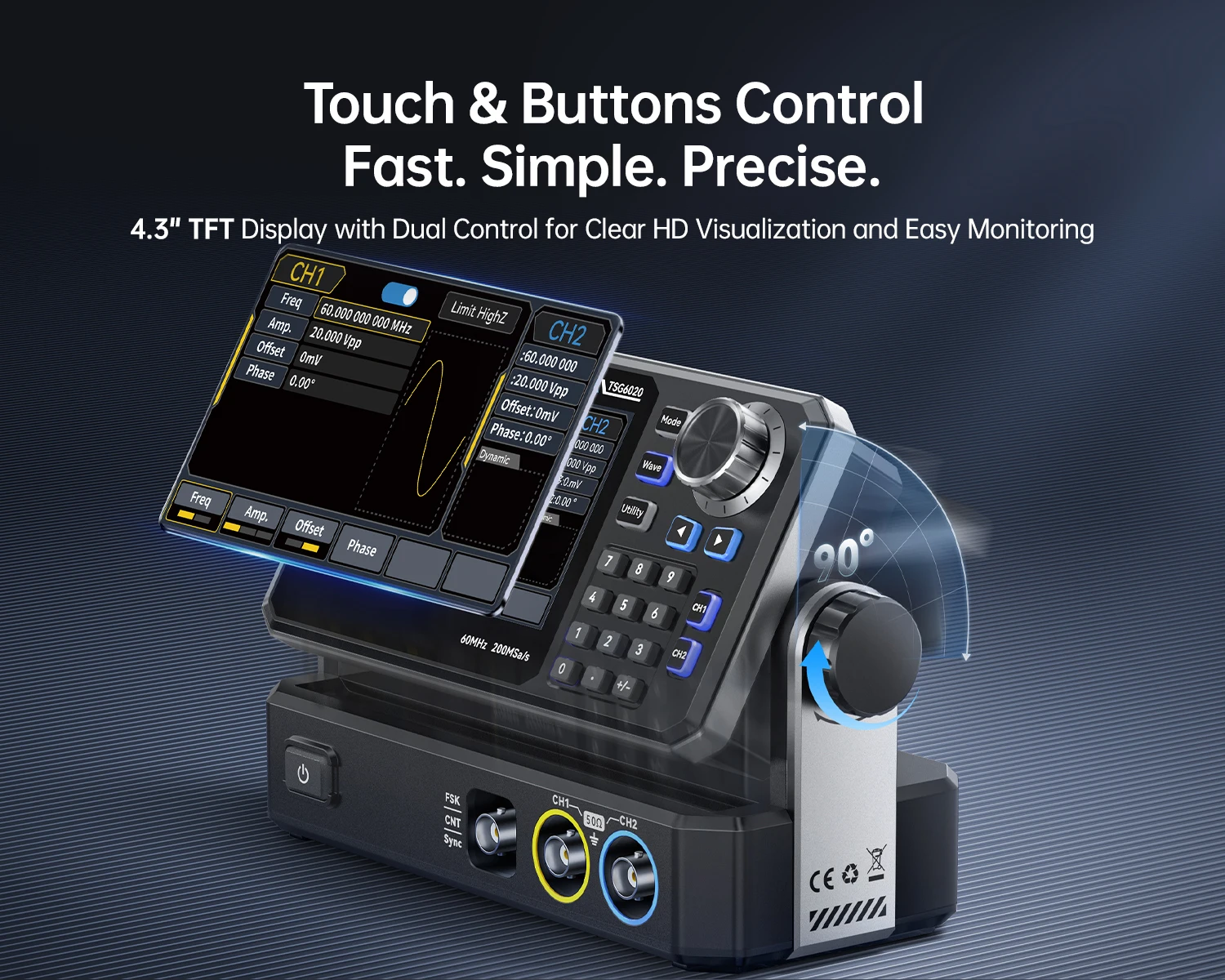

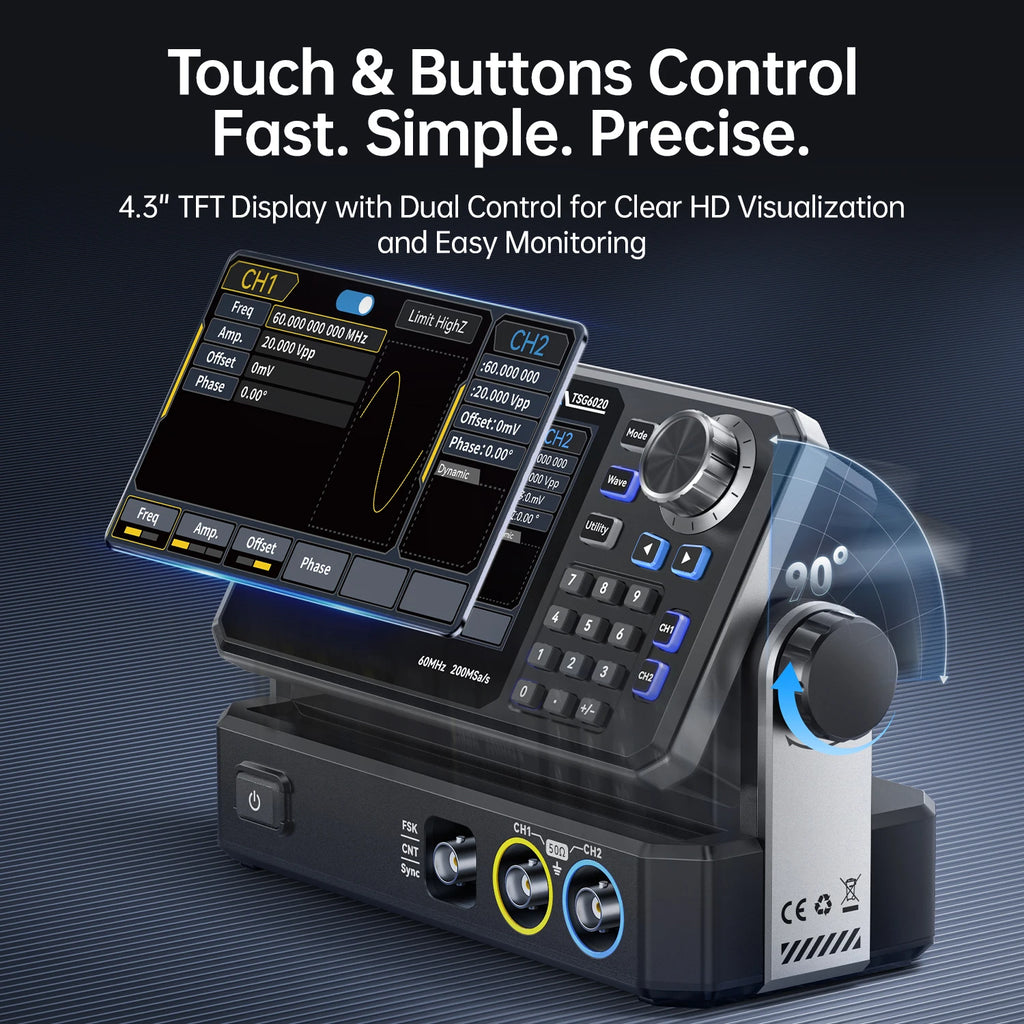

With a 4.3-inch capacitive touchscreen, keypad control, USB connectivity, and Type-C power supply, it is ideal for electronics repair, circuit debugging, teaching labs, and industrial equipment testing.

Key Features:

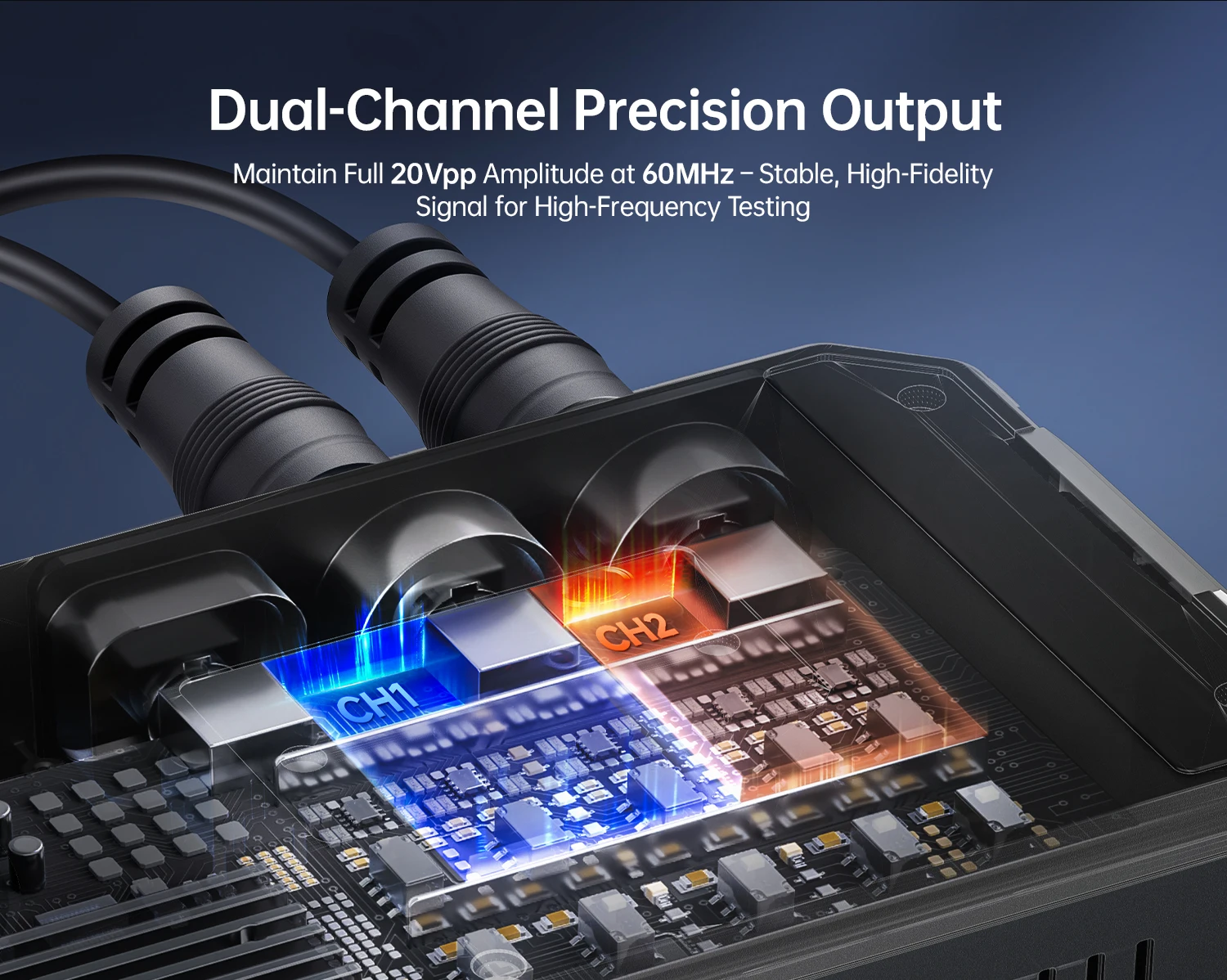

1. High-Performance Dual Channel Output: Offers two independent channels with a maximum output frequency up to 60MHz (TSG6020) and a substantial maximum output amplitude of 20Vpp (High Impedance, <10MHz).

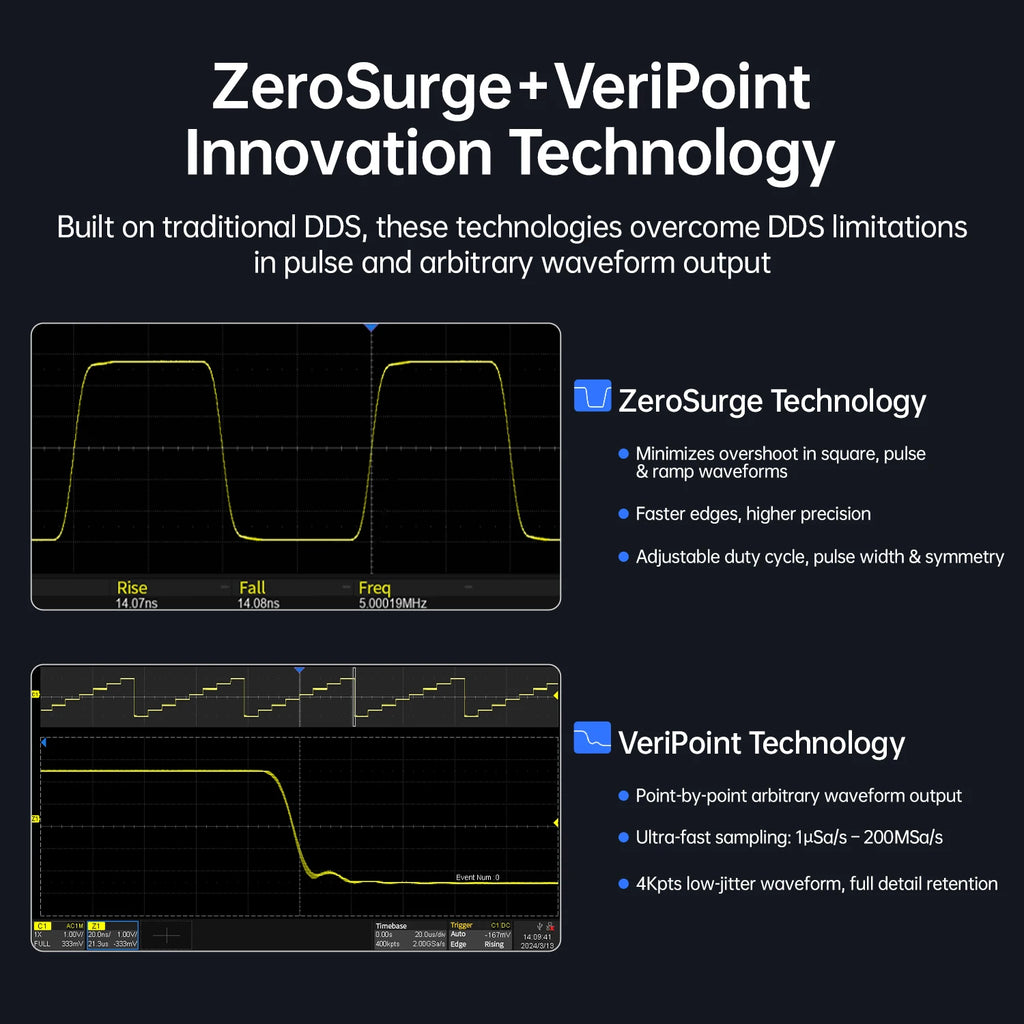

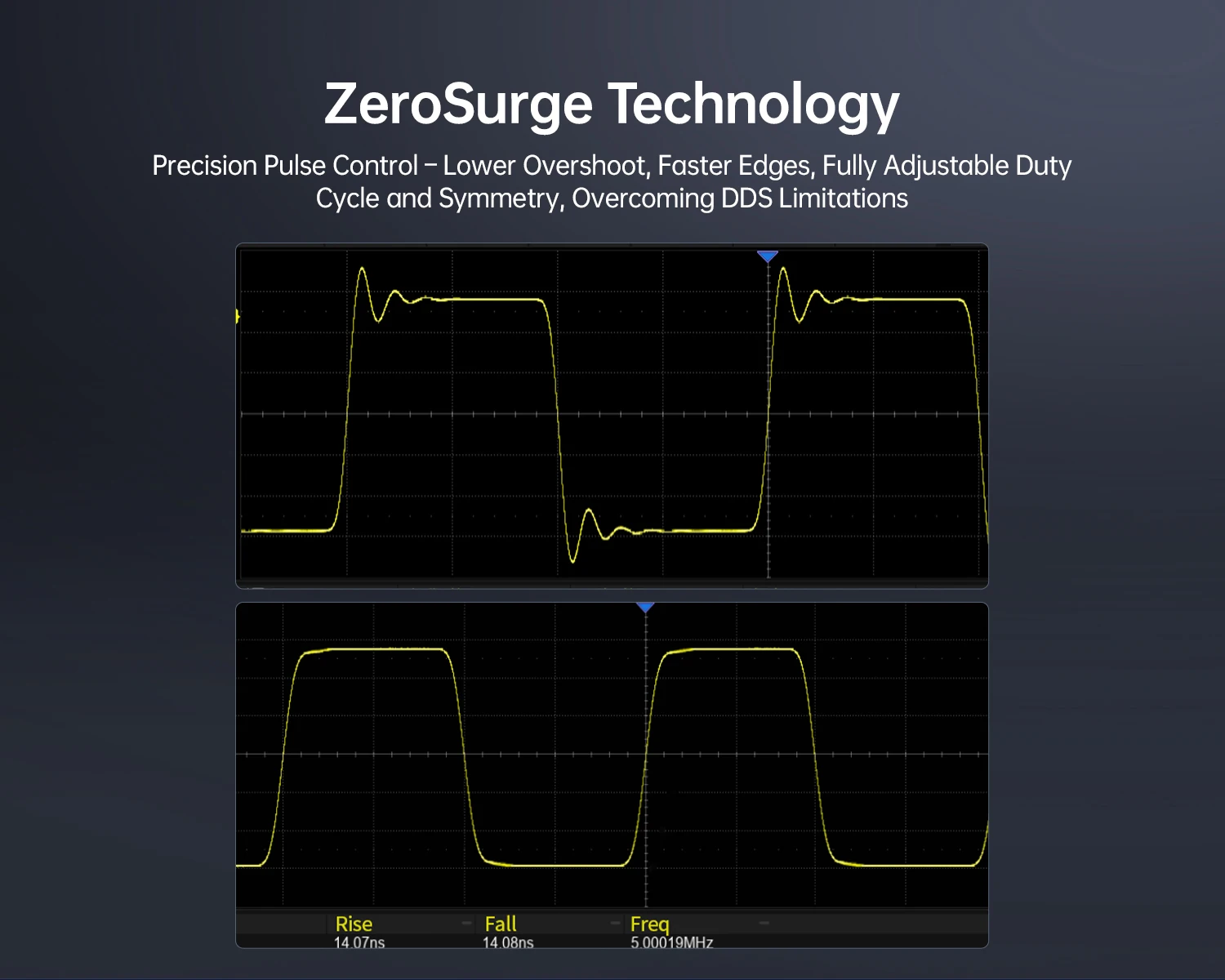

2. Innovative ZeroSurge Technology: Guarantees lower overshoot, faster edges, and higher precision for Square, Pulse, and Ramp waves, with finely adjustable duty cycle, pulse width, and symmetry.

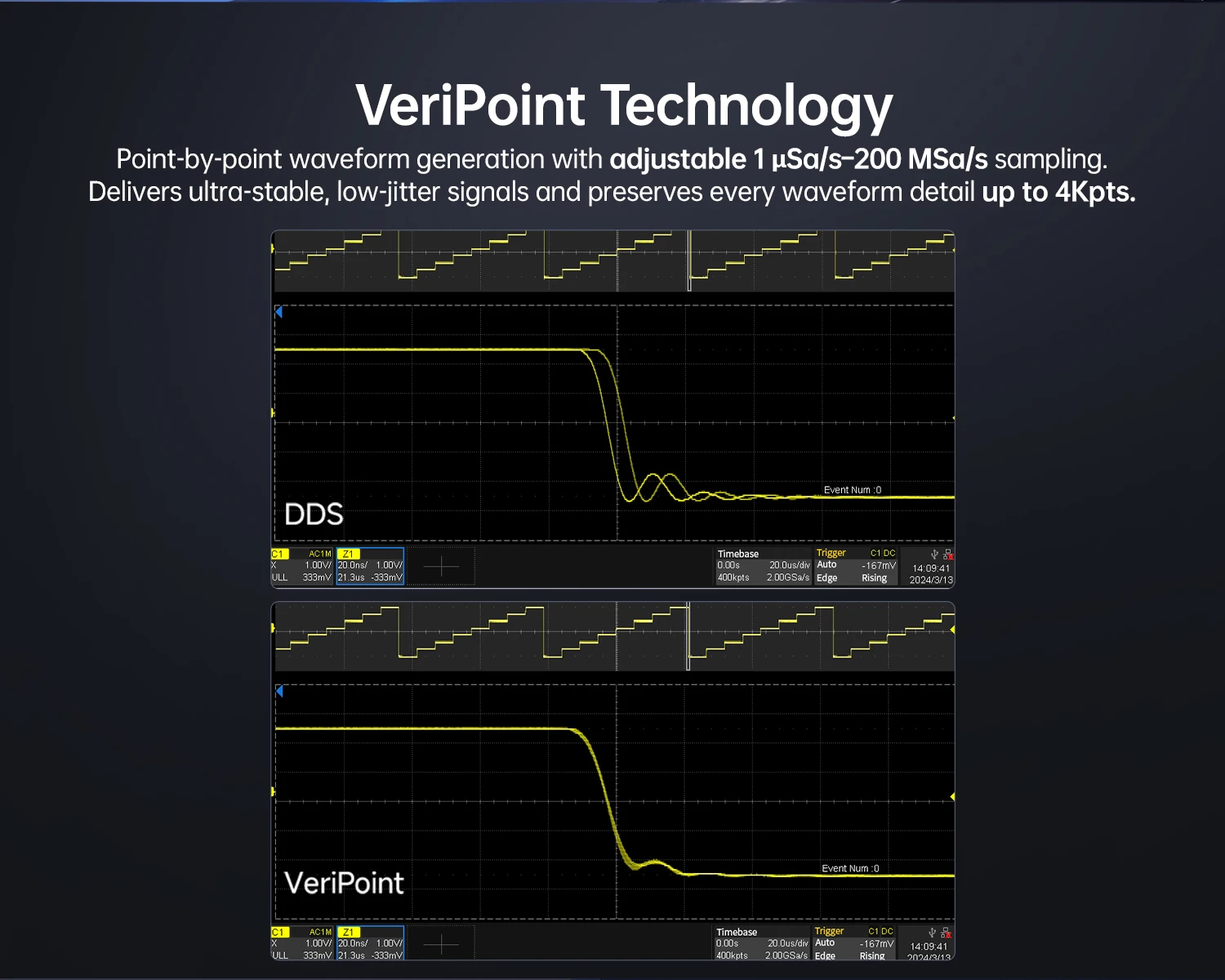

3. Advanced Arbitrary Waveform Generation: Utilizes VeriPoint Technology for low-jitter, point-by-point output with a 1uSa/s to 200MSa/s stepless variable sampling rate across a 4Kpts memory length.

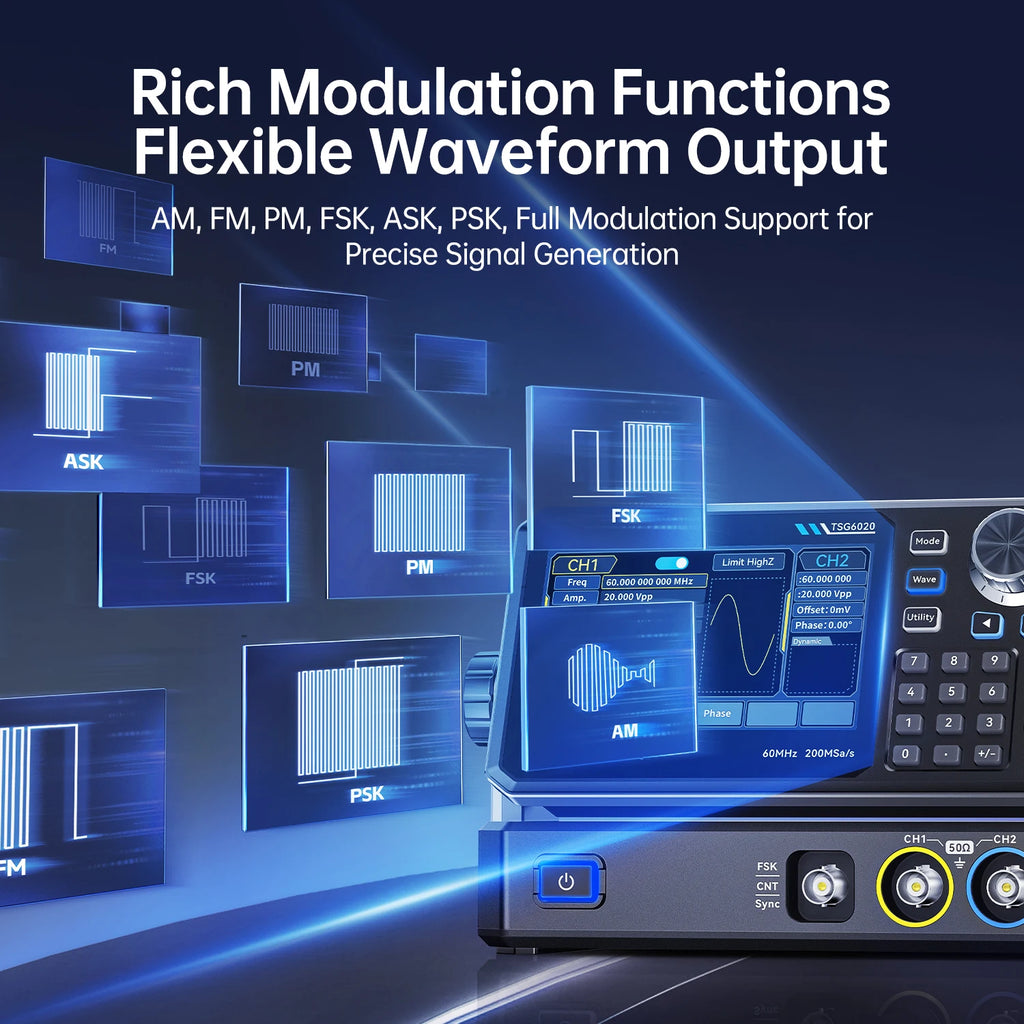

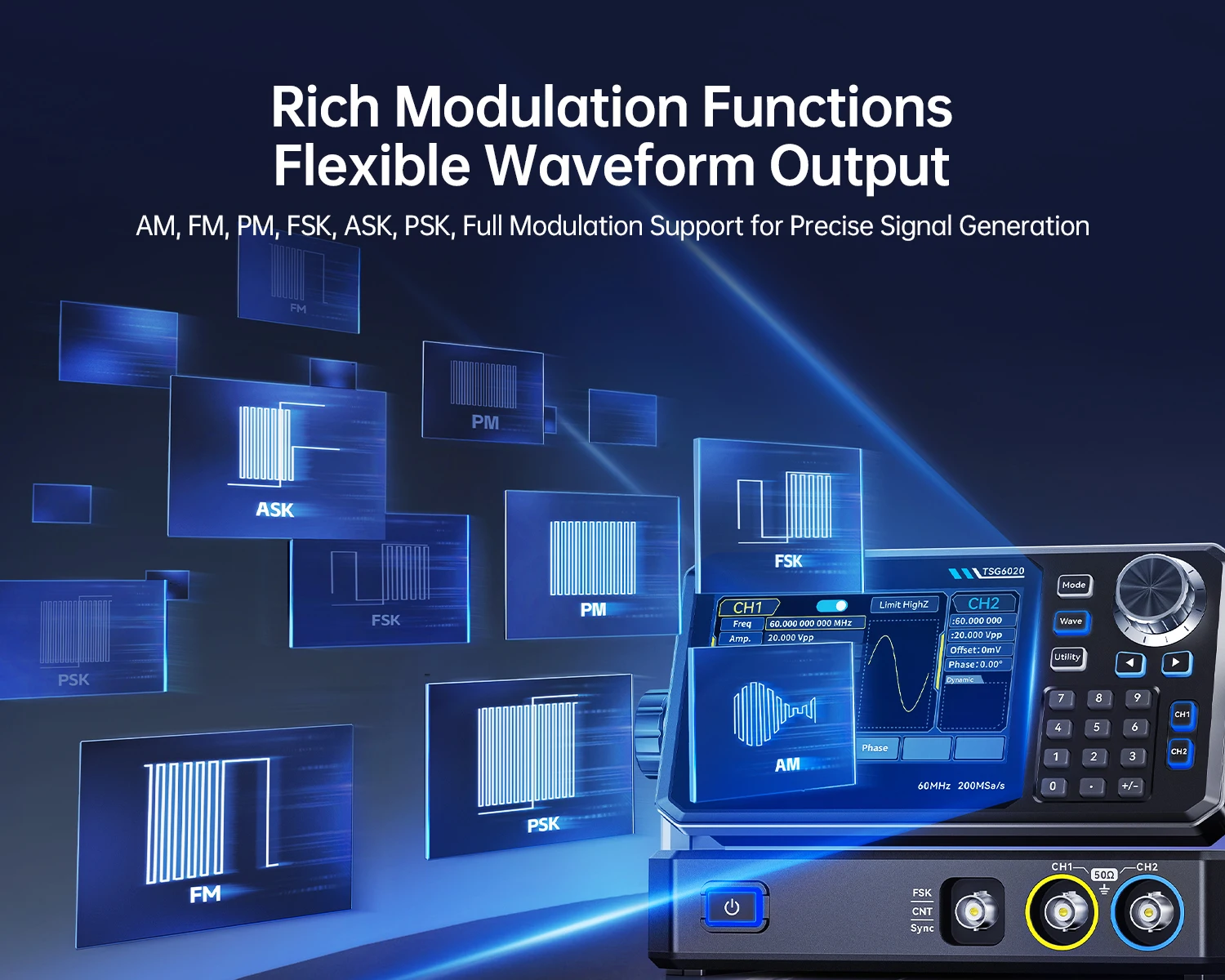

4. Comprehensive Modulation & Sweep: Supports a rich set of modulation types including AM, FM, PM, ASK, PSK, and FSK, alongside linear and logarithmic frequency sweep functions.

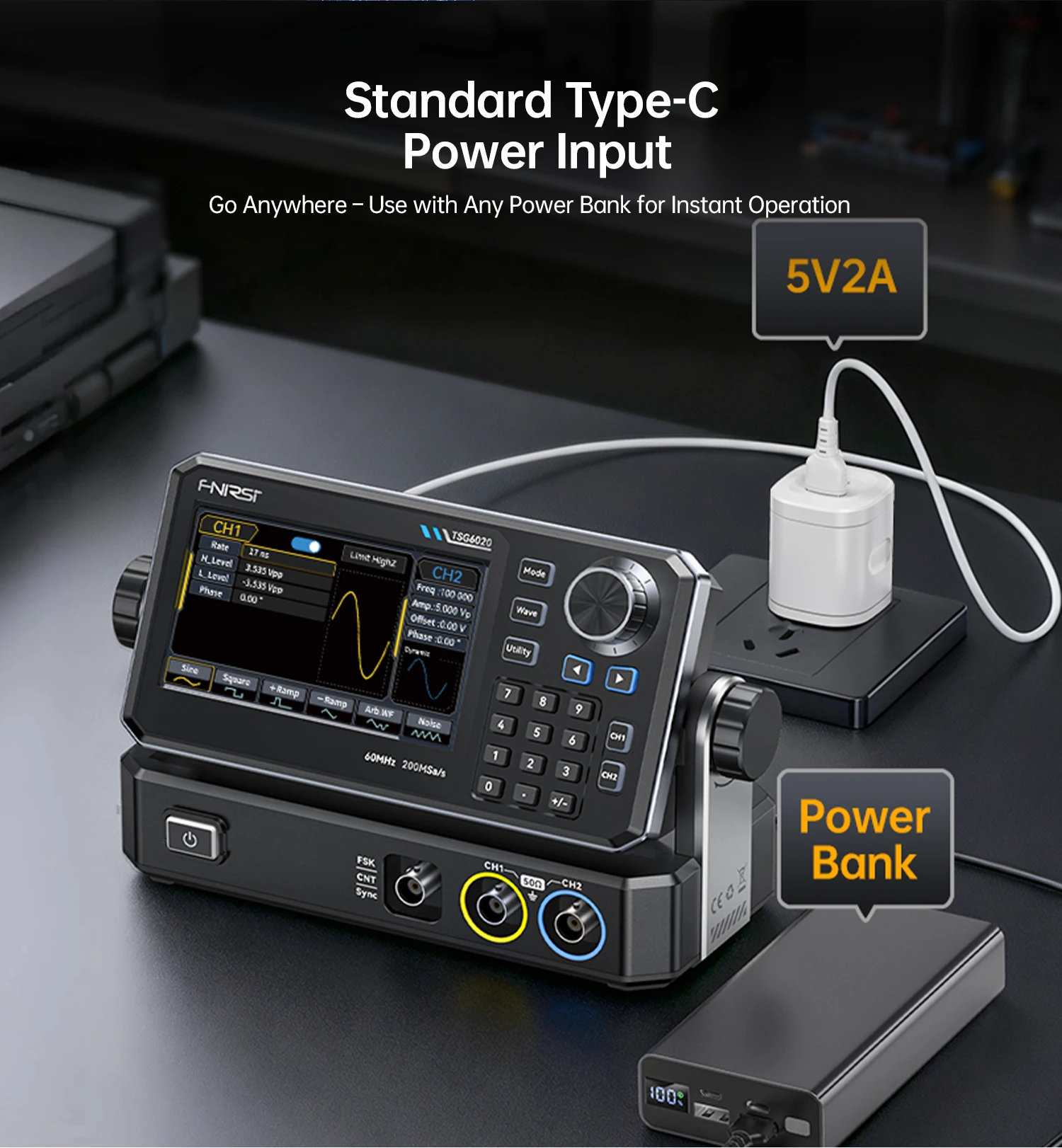

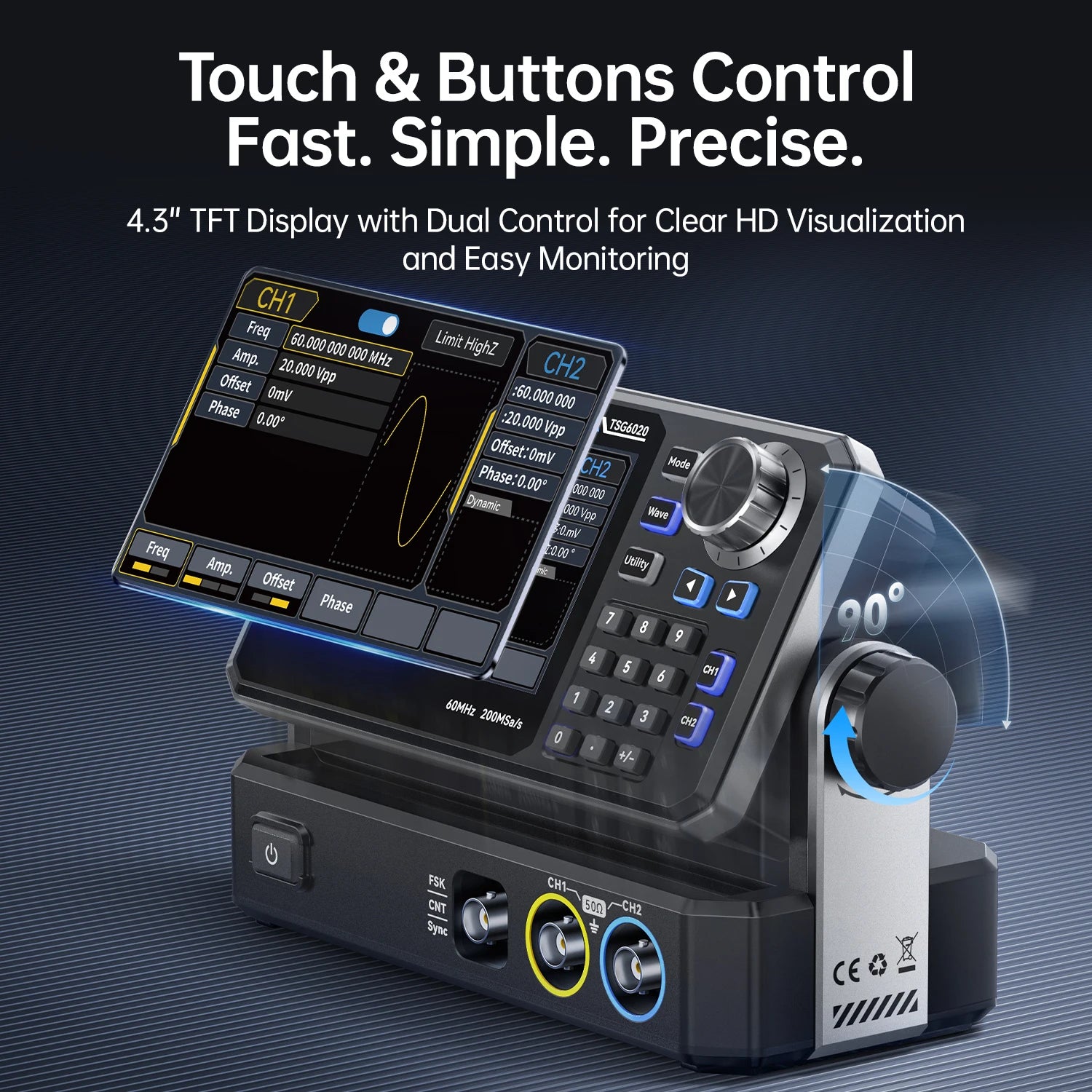

5. Multi-interface Power Supply & Control: Features an intuitive 4.3-inch TFT-LCD touch display and supports Type-C power input, allowing for portable, on-site testing via a mobile power bank.

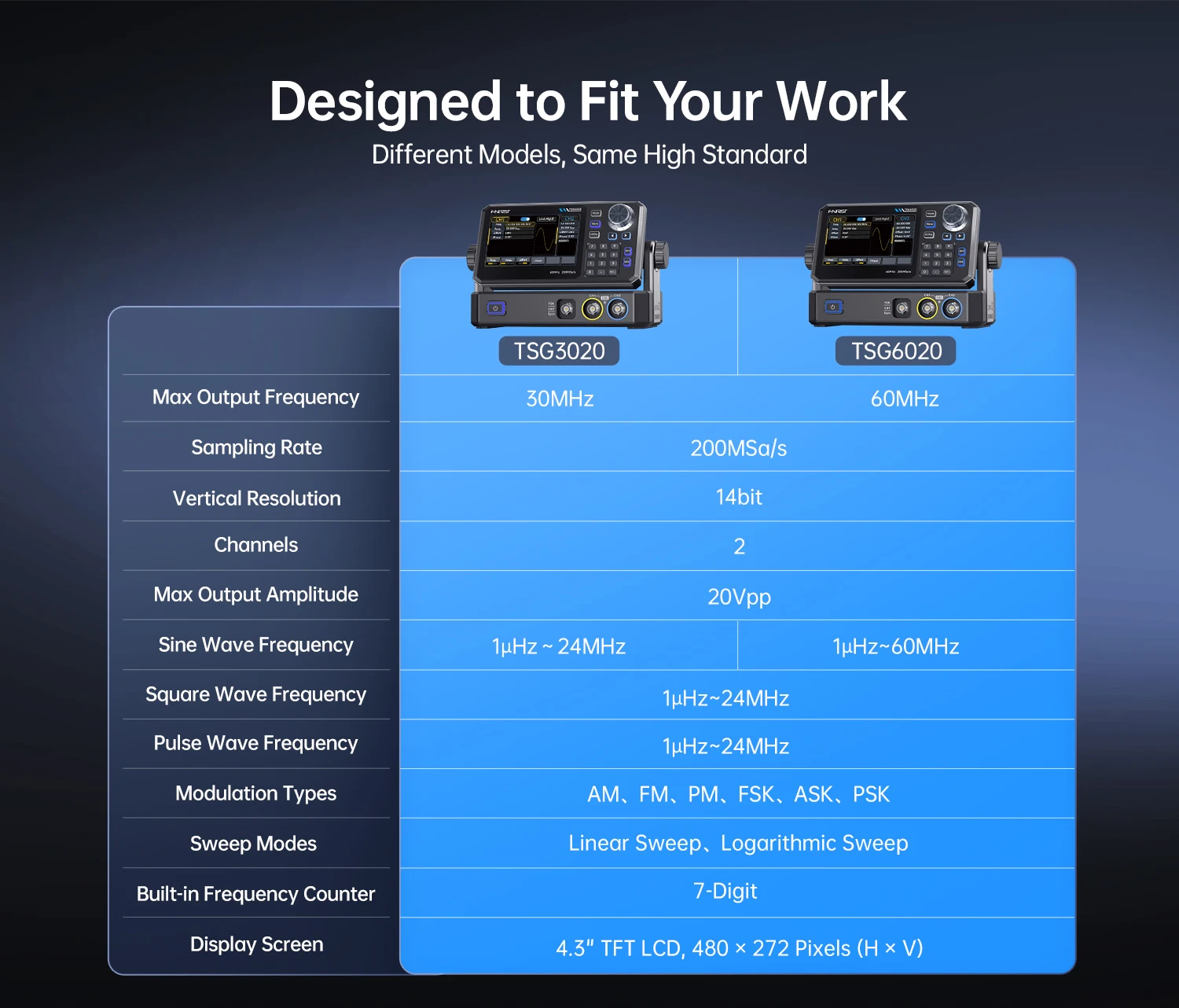

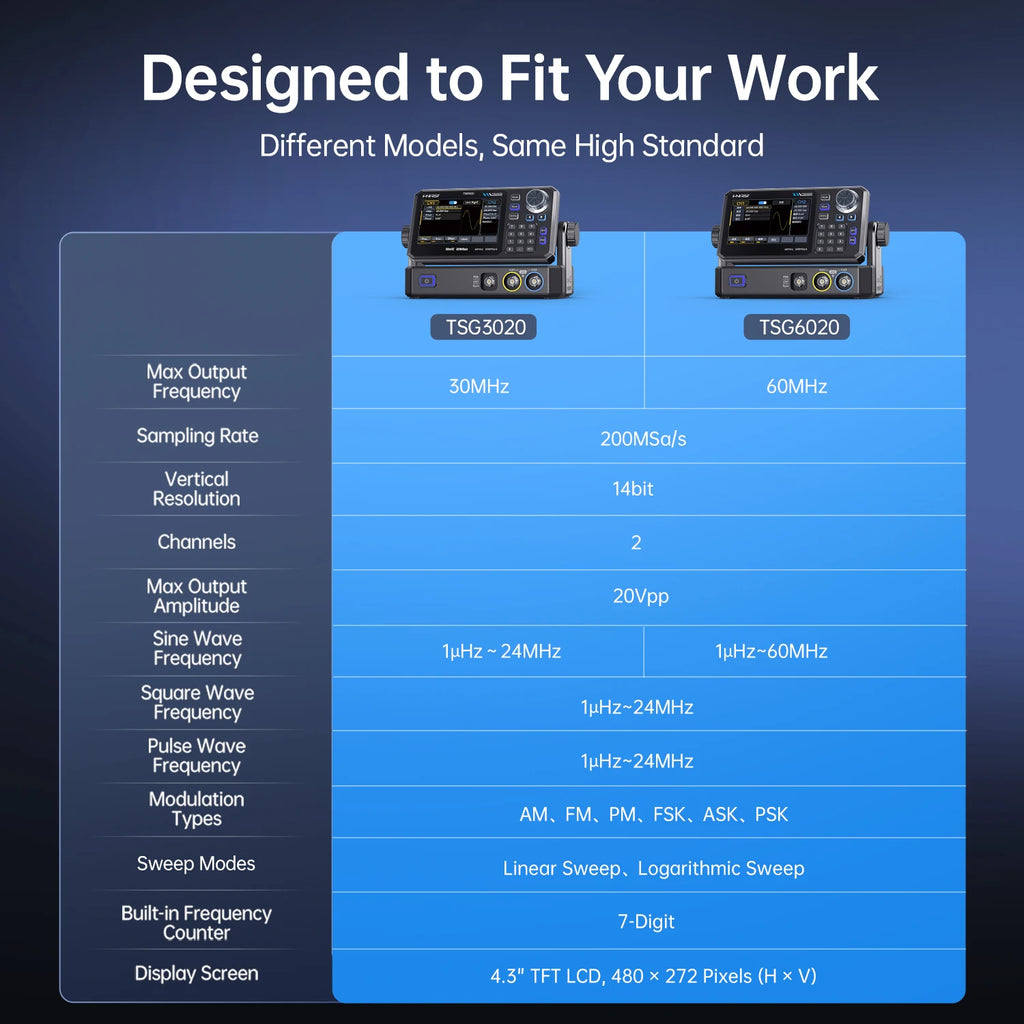

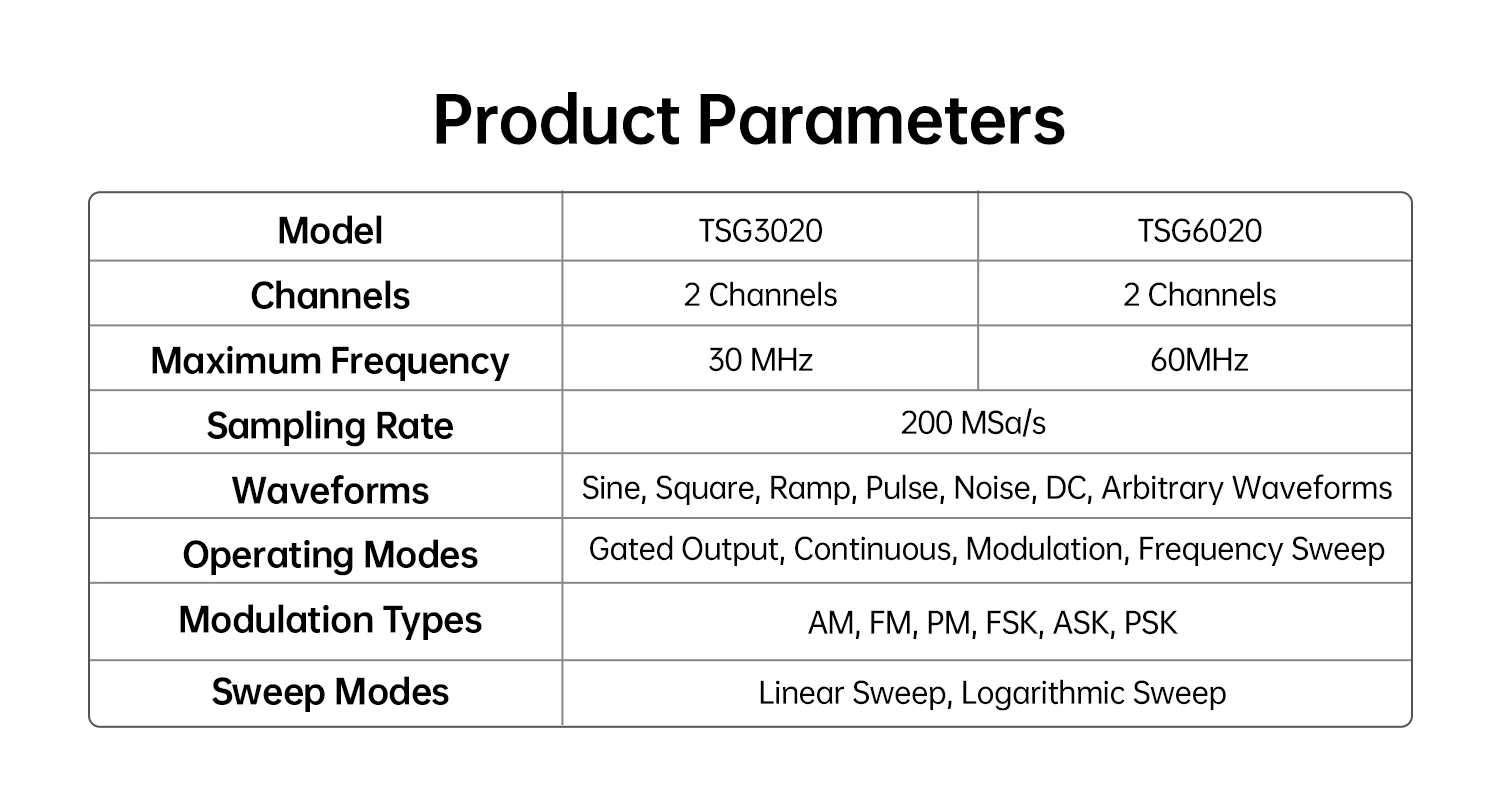

Basic Information

Model: TSG3020 / TSG6020

Channels: 2

Display: 4.3-inch TFT capacitive touchscreen

Power Input: Type-C 5V/2A

Interface: USB Device

Output Impedance: 50Ω

Frequency Output

Max Output Frequency：

·TSG3020: 30MHz

·TSG6020: 60MHz

Sampling Rate: 200MSa/s

Vertical Resolution: 14 bits

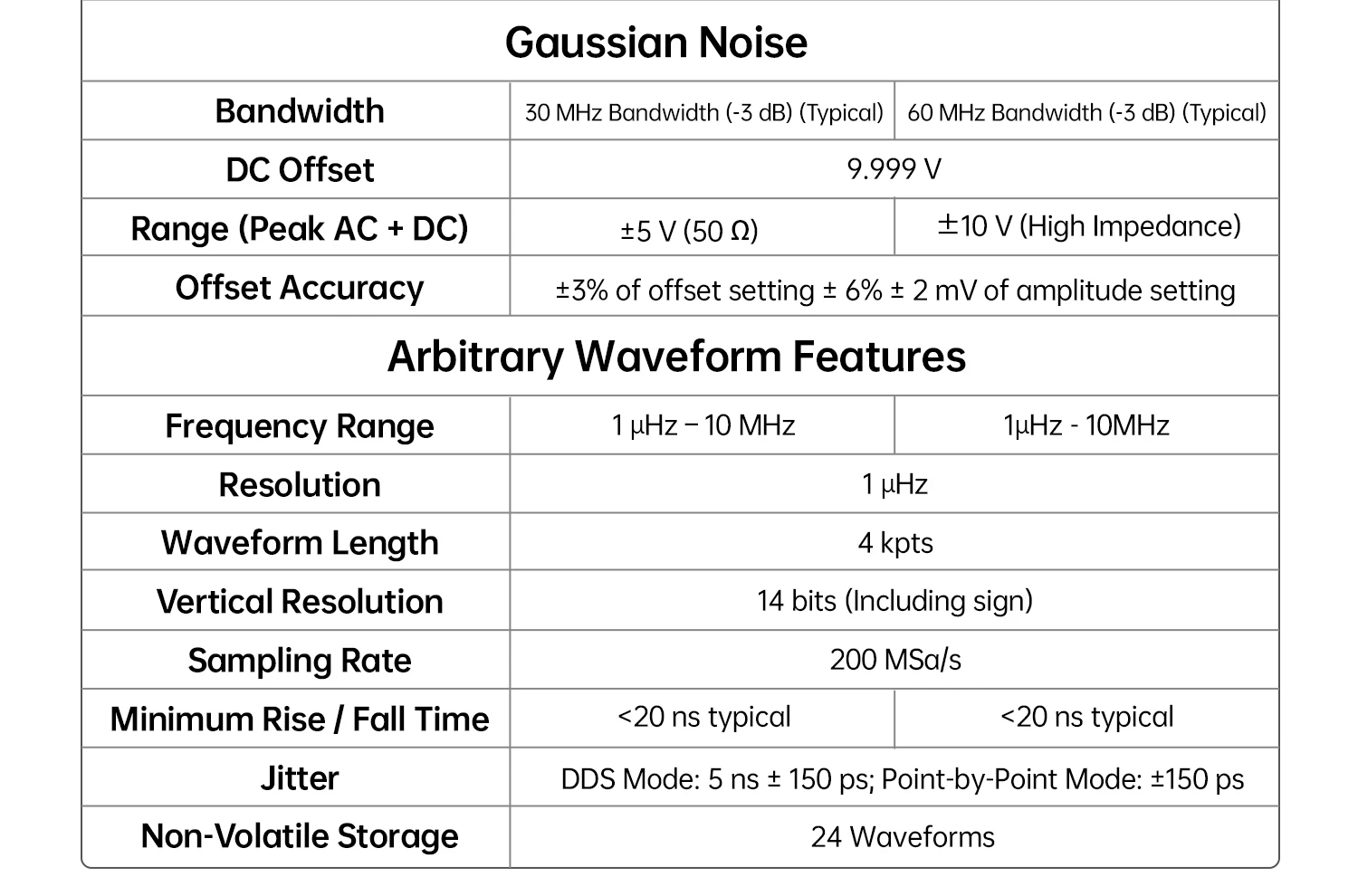

Arbitrary Waveform Length: 4kpts

Waveform Types: Sine / Square / Pulse / Ramp / Noise / DC / 24 Arbitrary

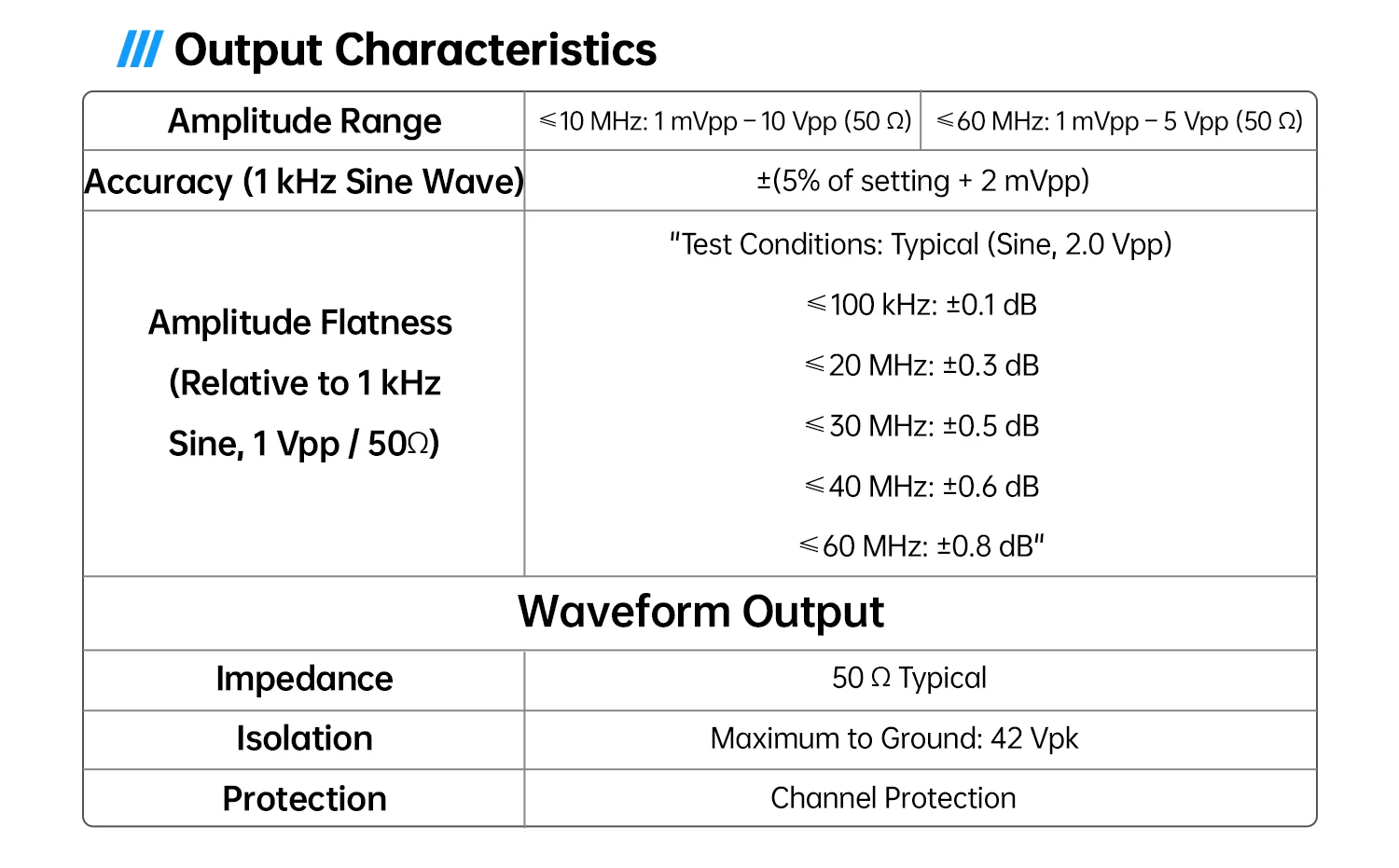

Amplitude Range (High-Z): 2mVpp–20Vpp (<10MHz) / up to 10Vpp (>10MHz)

Amplitude Range (50Ω): 1mVpp–10Vpp (<10MHz) / up to 5Vpp (>10MHz)

DC Offset: ±10V (High-Z) / ±5V (50Ω)

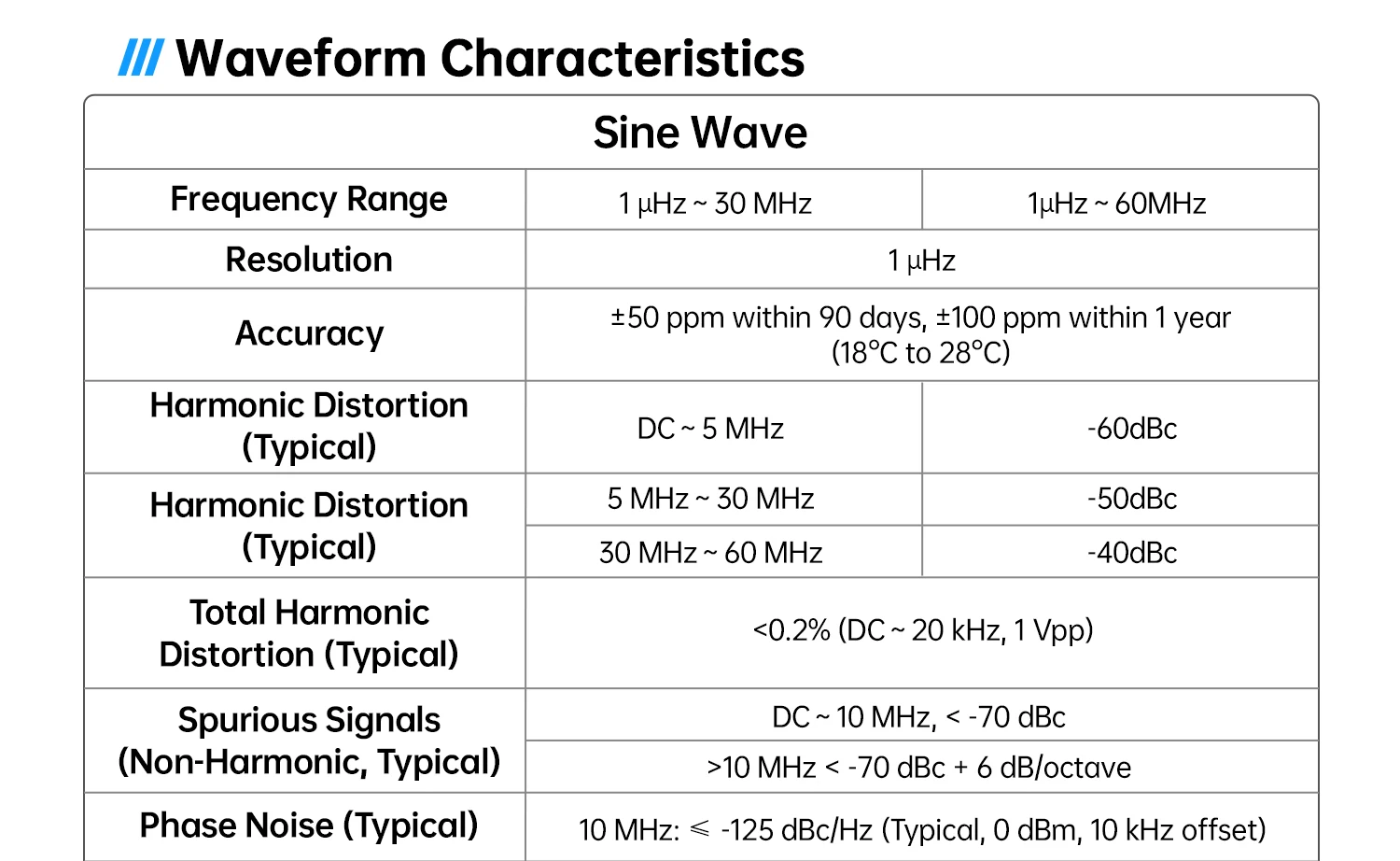

·Sine Wave

Frequency Range: 1µHz – 30MHz / 60MHz

Accuracy: ±1ppm

Wave Purity: Low-jitter design

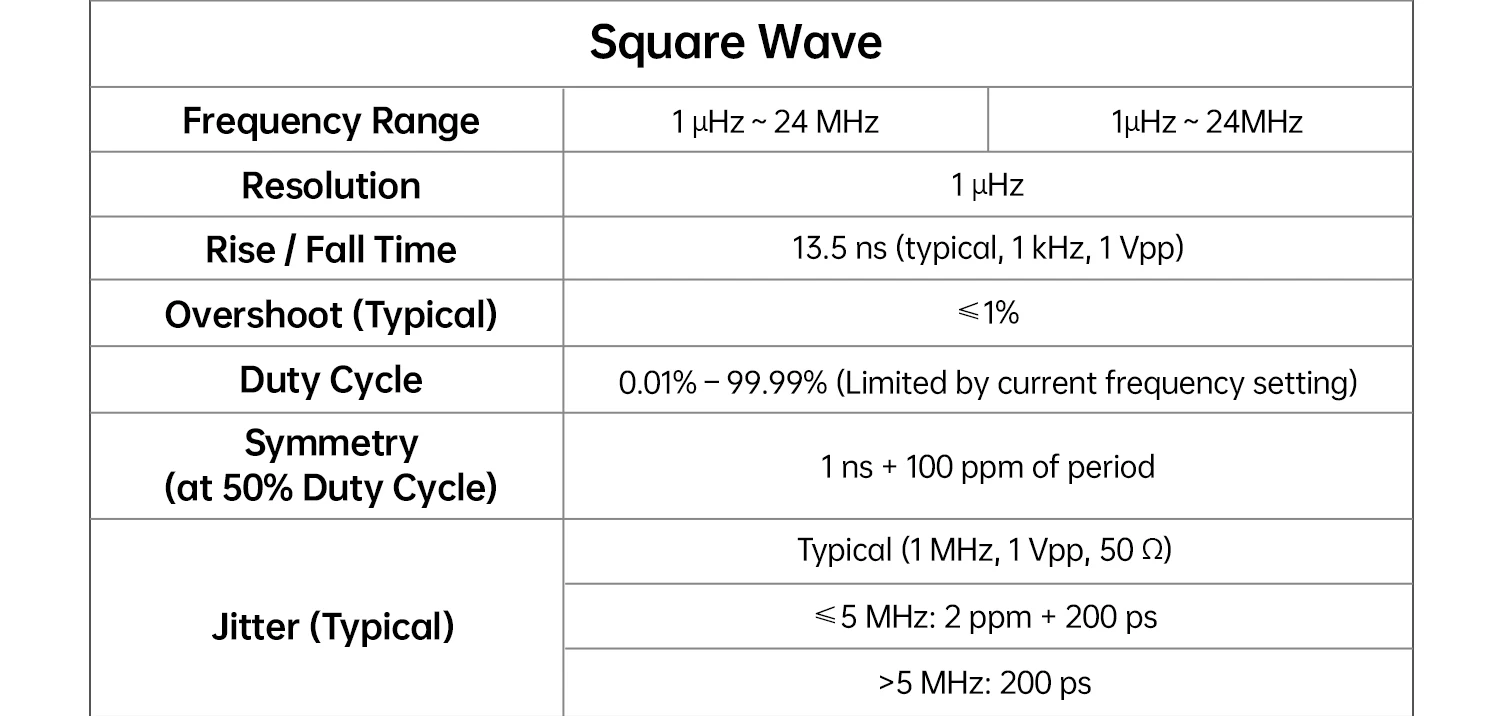

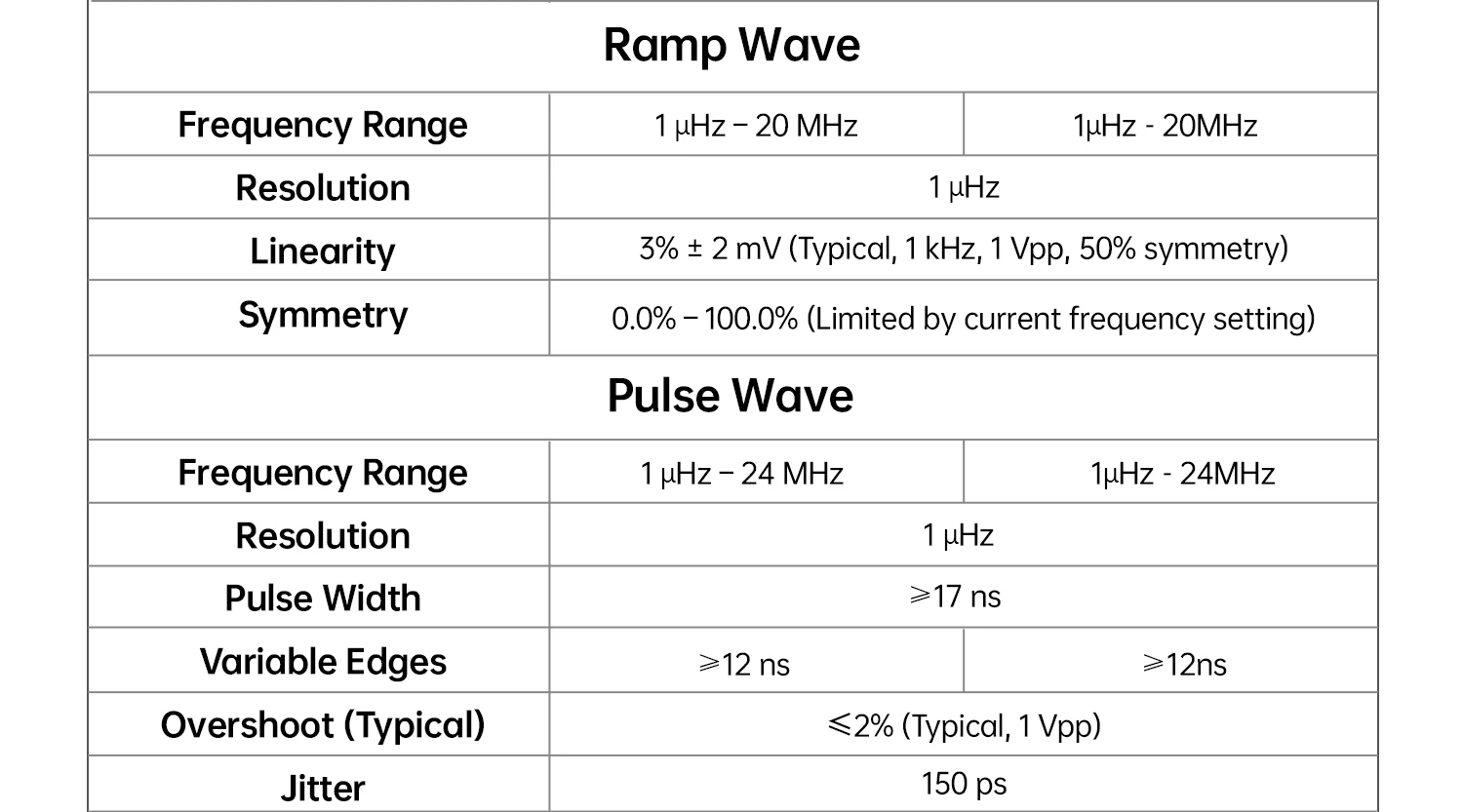

·Square / Pulse

Max Frequency: 24MHz

Duty Cycle: 0.01% – 99.99%

Rise/Fall Time: 13.5ns (typ.)

·Ramp / Triangle

Max Frequency: 20MHz

Symmetry Adjustment: 0–100%

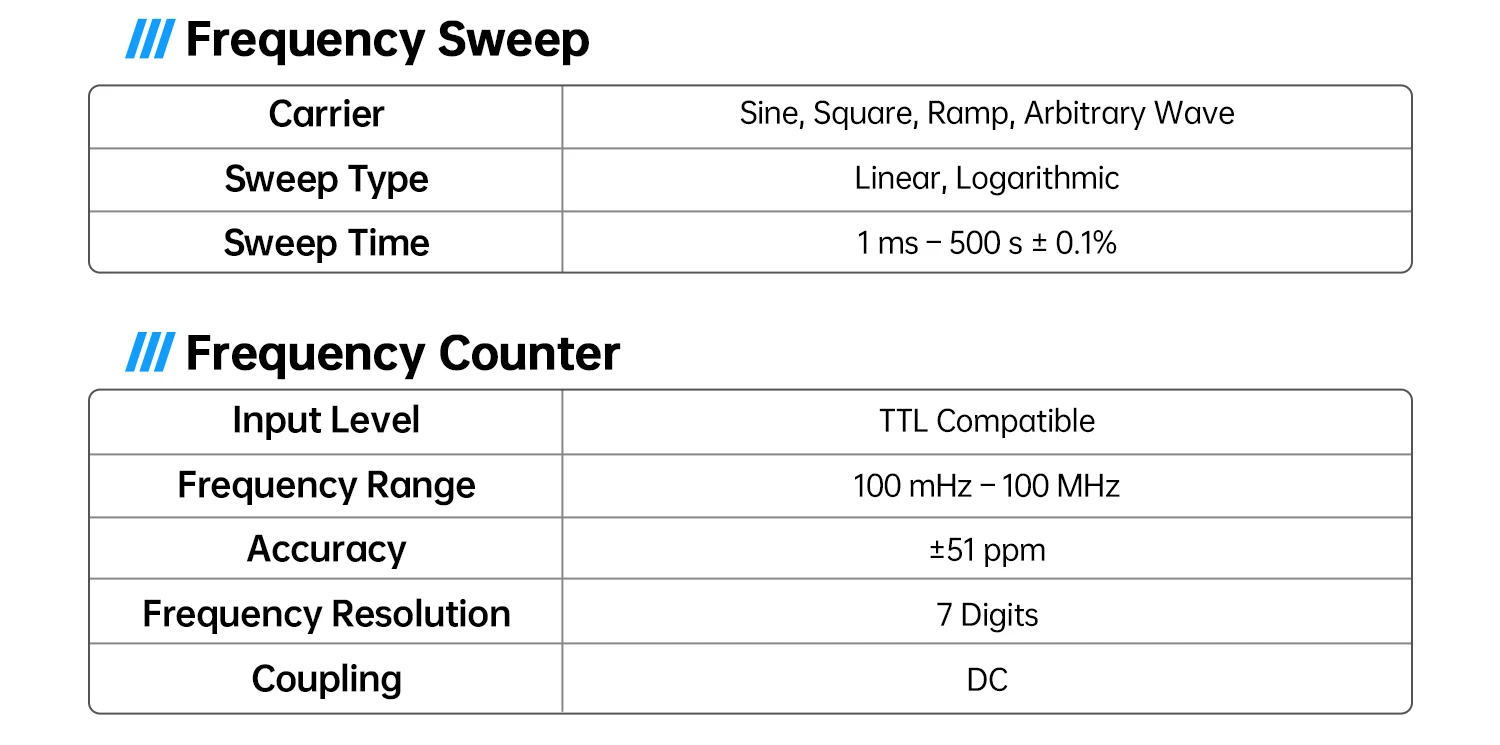

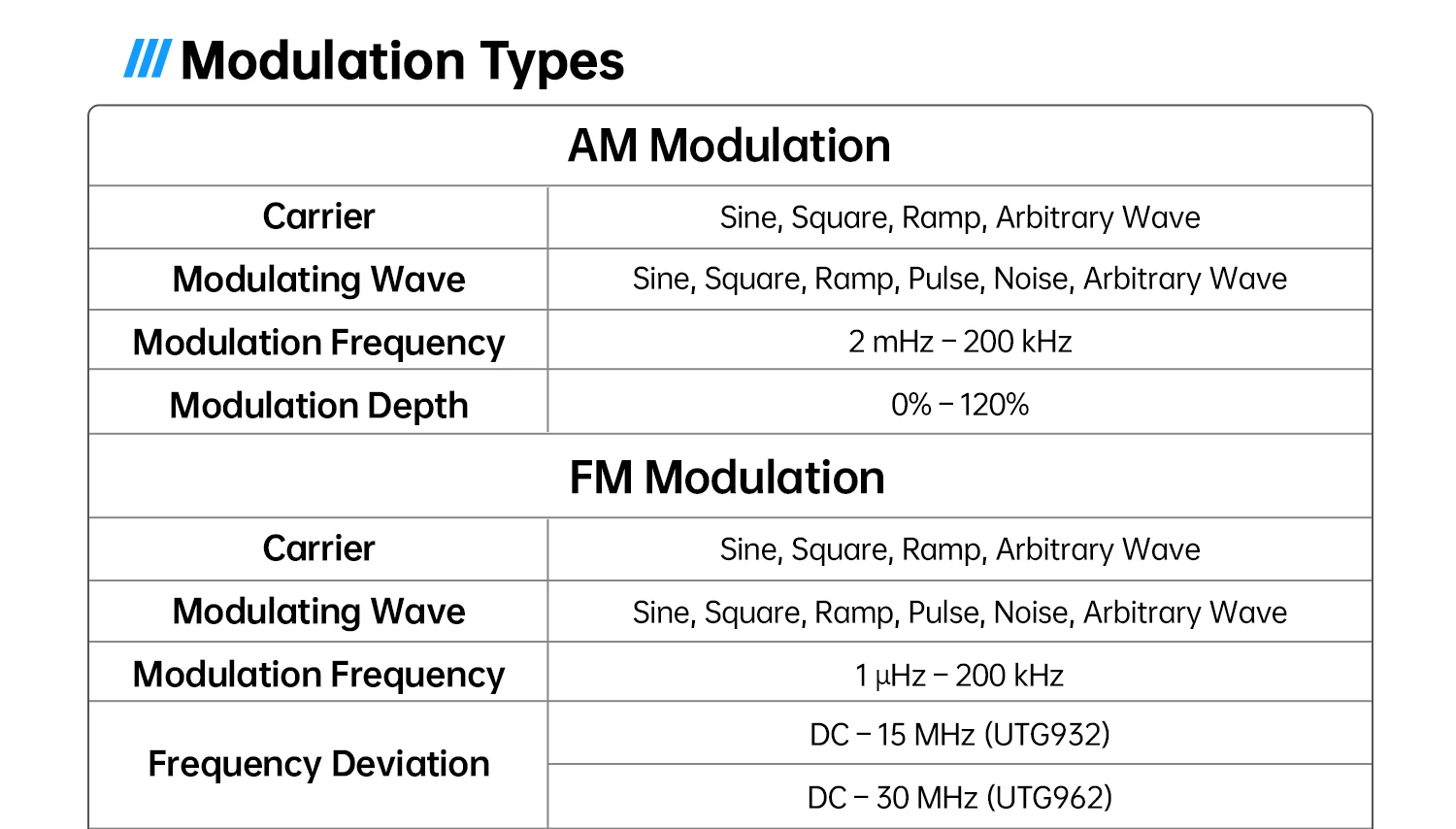

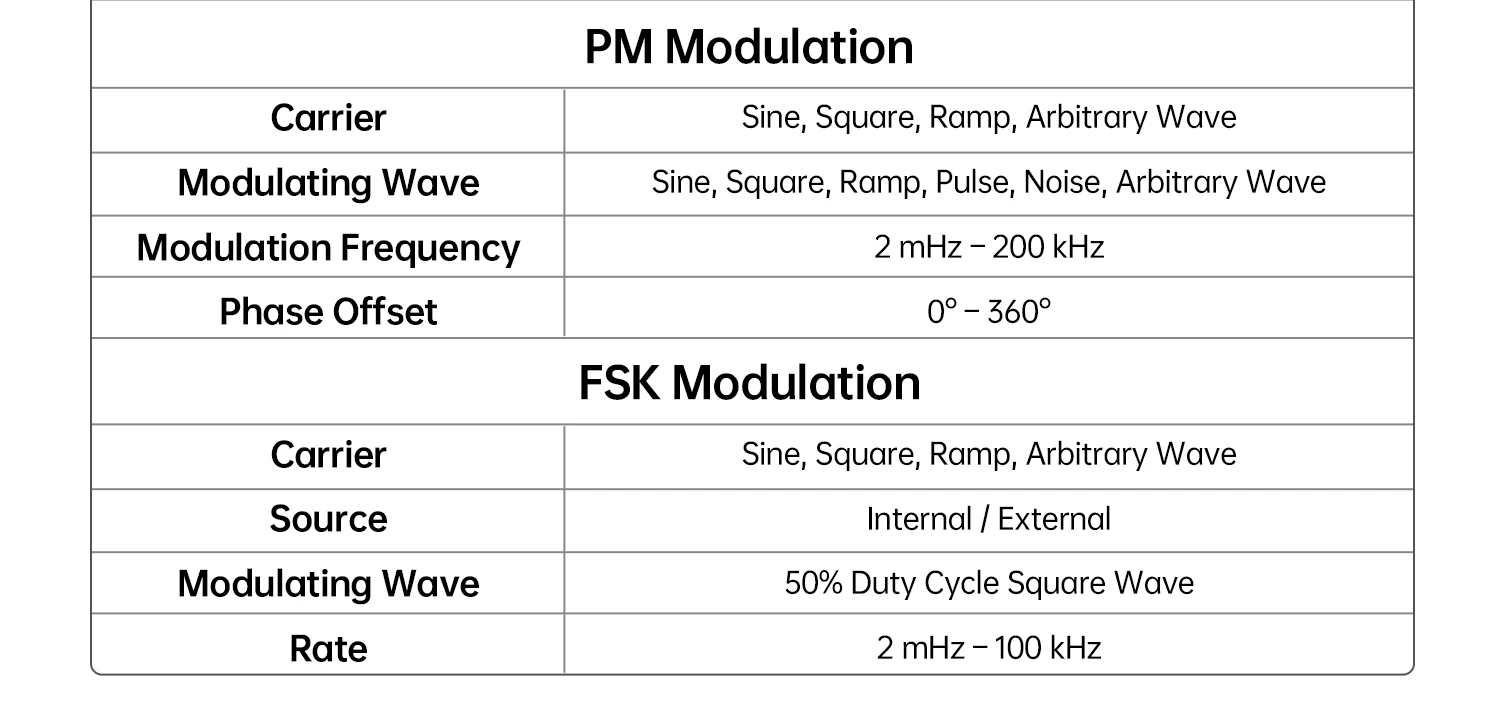

·Modulation & Sweep

Modulation: AM / FM / PM / ASK / FSK / PSK

Sweep: Linear / Log

Internal Modulating Waveforms: Sine / Square / Ramp / Noise / Arbitrary

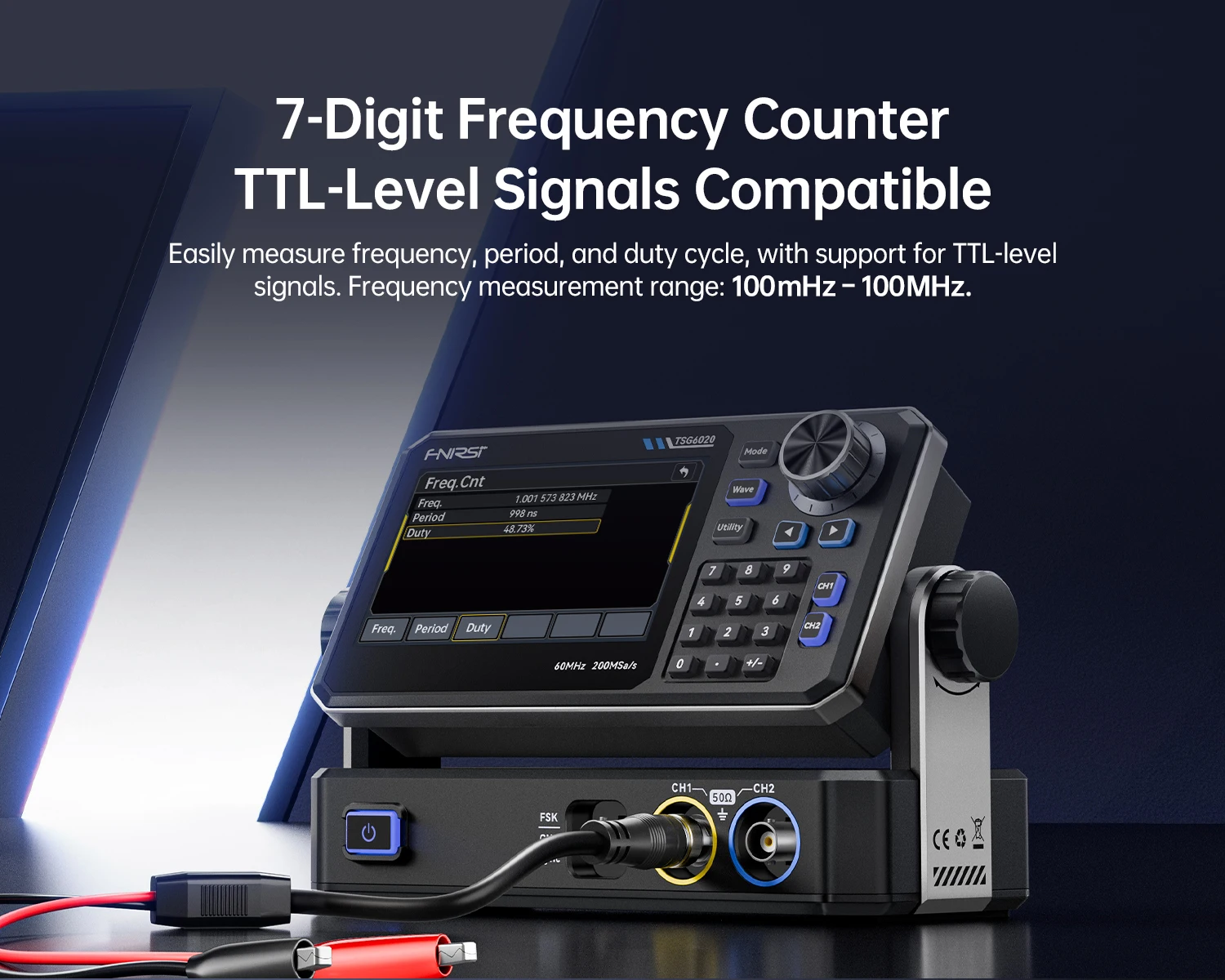

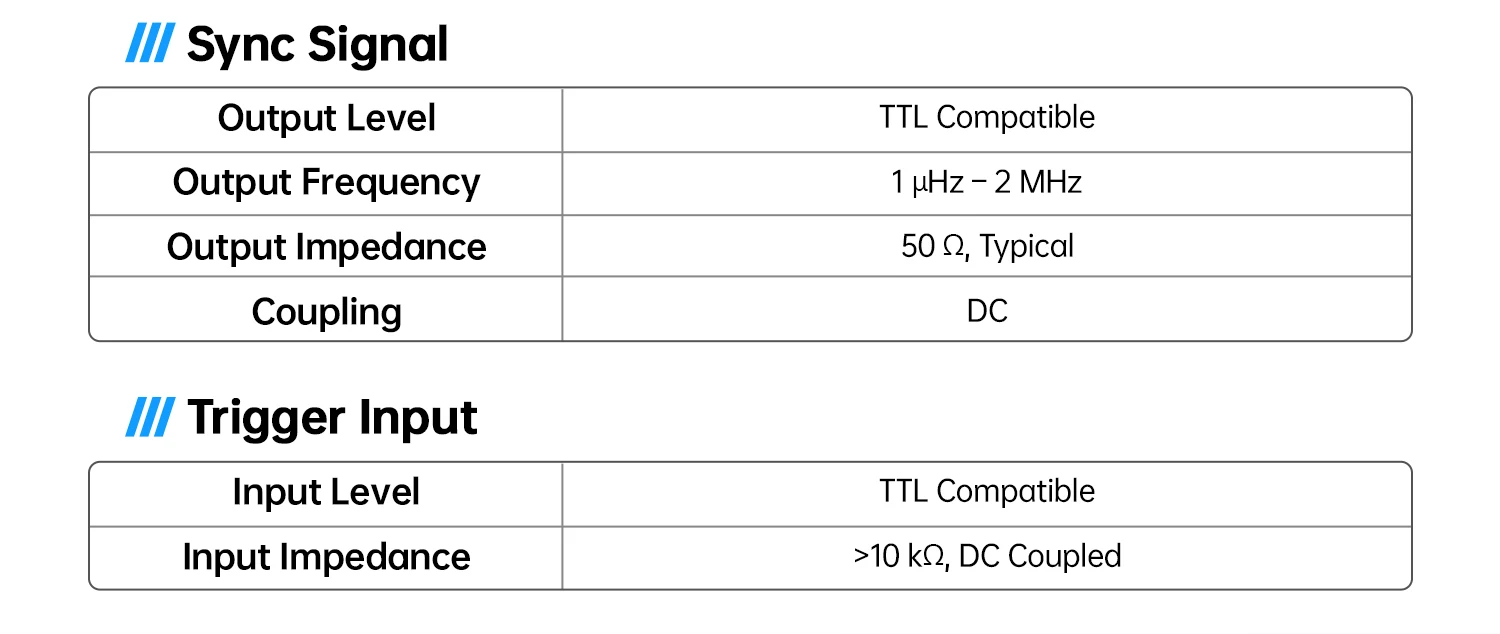

Frequency Counter

Range: 100mHz – 100MHz

Signal Level: TTL compatible

TSG3020 (30MHz)

1. TSG3020 Signal Generator

2. Charging Adapter

3. Type-C Charging Cable

4. Data Cable

5. Test Lead Cable

6. Alligator Clips

7. User Guide

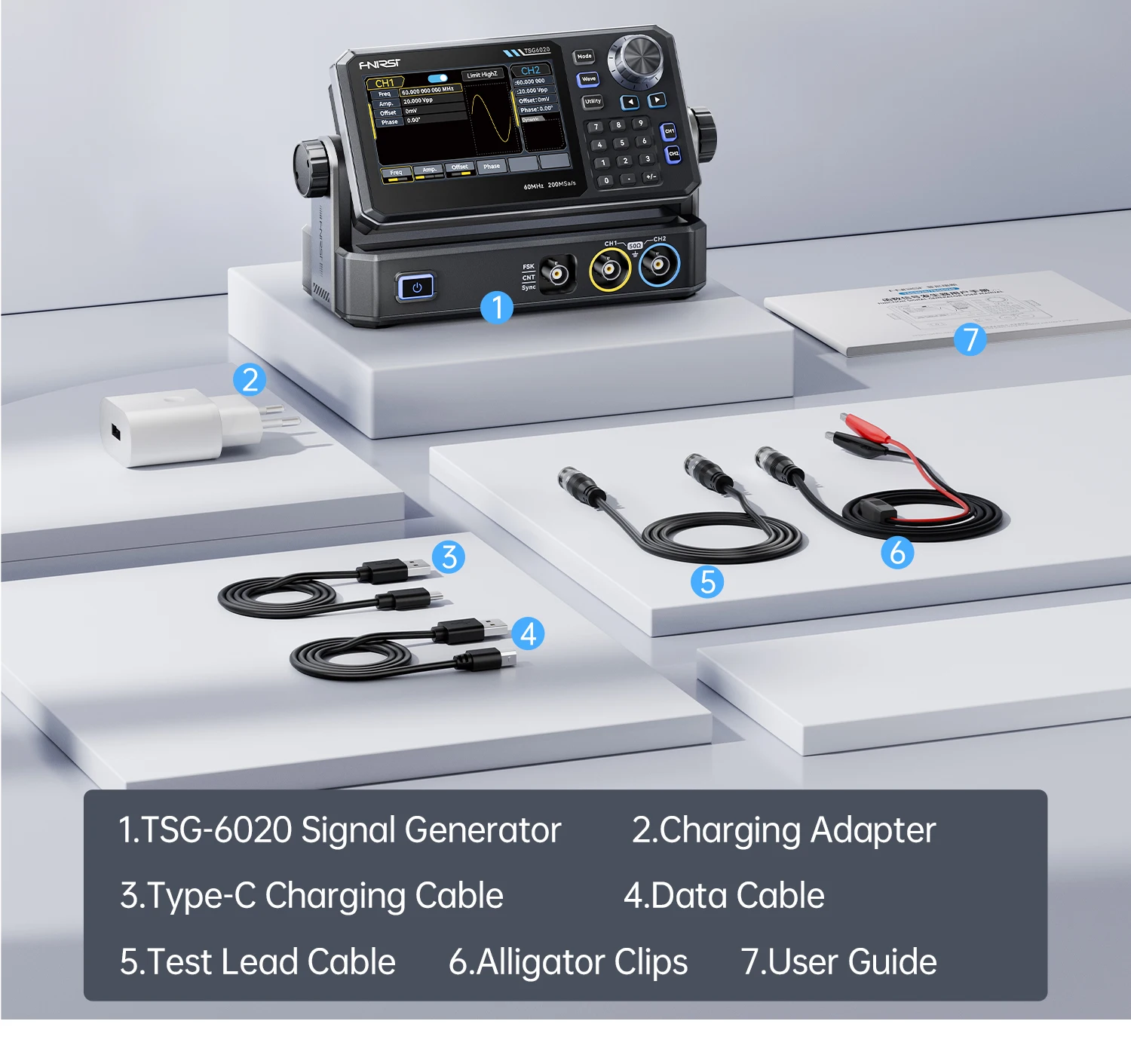

TSG6020 (60MHz)

1. TSG6020 Signal Generator

2. Charging Adapter

3. Type-C Charging Cable

4. Data Cable

5. Test Lead Cable

6. Alligator Clips

7. User Guide
